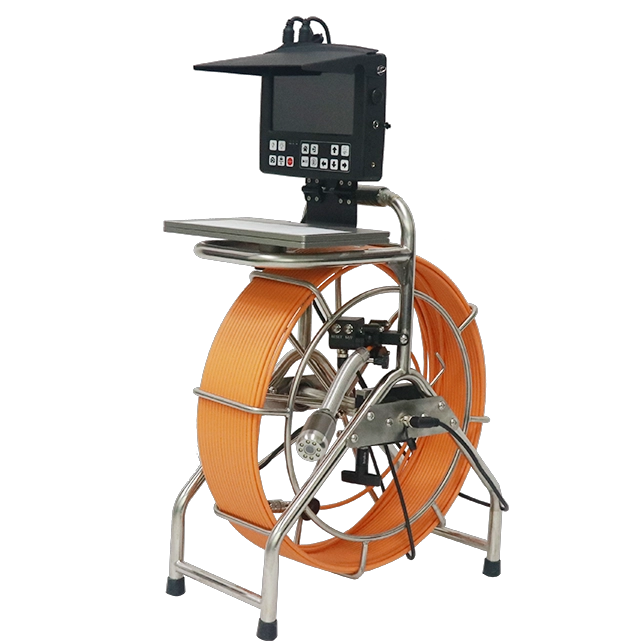

Self-level HD Pipe Inspection Camera System
- Self-level HD pipe inspection camera system P10002SCM,equipped a Ф40mm HD camera,60 meter push rod cable,and an 8-inch multifunctional portable control box,
Self-level HD pipe inspection camera system P10002SCM
Application:

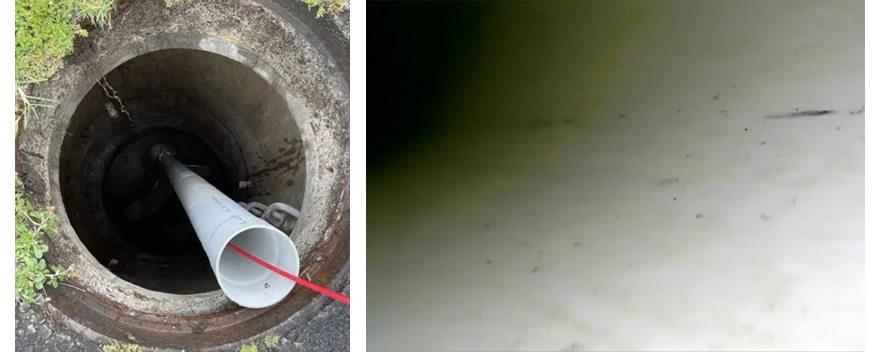

- Sewer pipe and wall inspection
- Building ducts/HVAC/R inspection
- Municipal and infrastructure
- Residential and commercial plumbing inspection
- CCTV drain pipe inspection
- Underwater inspection
- All other visual applications
Detail spec of the P10002SCM

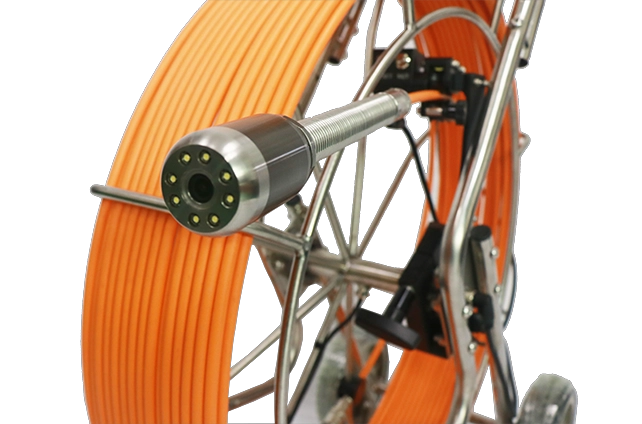

| self-level HD camera | |
| Camera Head Dimension | Ø40mm*60mm |
| Resolution | 1080 full HD |
| Camera Housing Material | Stainless steel & Alumium |
| Waterproof | IP68,fresh water depth:100M |
| Lens Windows | Sapphhire glass |
| View Angle | 90° |
| Illumination | 8 super light LEDs (adjustable) |
| Built-in sonde | Built-in 512HZ transmitter( optional) |
| Skid | Ø215mm(big skid);Ø130mm(small skid) |

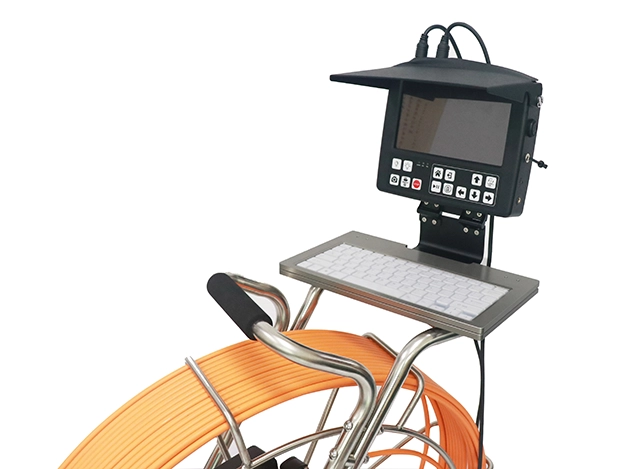

| Surface Control Suitcase | |
| Screen | 8"HD IPS LCD Screen with sunshade,1280X720 resolution, 16:9 display model |
| LCD Panel | Waterproof |
| HD DVR System | Video Recording: 720P HD,AVI format |
| Keyboard | USB wireless Keyboard real time typewriting |
| Storage Media | USB flash disk (16G） |
| Built-in Battery | 7000mA rechargeable li-ion battery pack,run-time: 4 hours,charging time:7hours |
| Battery Level Indication | On-screen |
| Charger | AC 110V-240V 1.5A power charger |
| Can be mounted on the cable reel,handheld,or hung around the neck (optional). | |

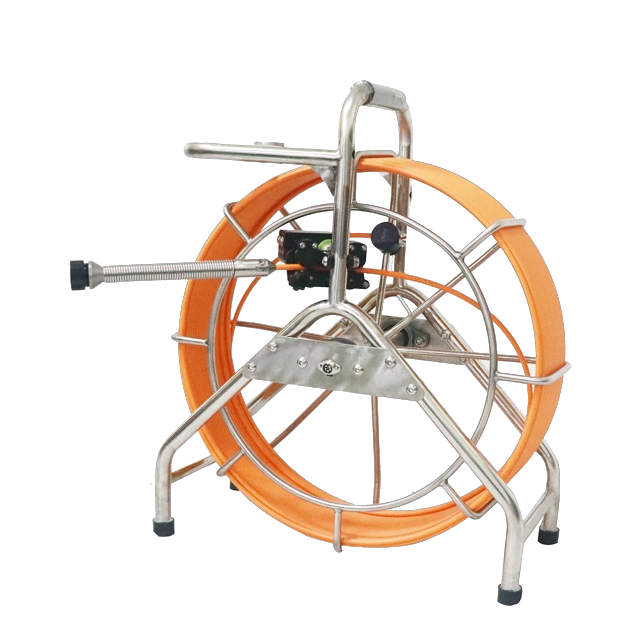

| Push Cable | |
| Cable Material | Fiberglass |
| Cable Thickness | Ø7mm |
| Cable Length | 60m |
| Cable Wheel Size | 510(L)*250(W)*640(H)mm |

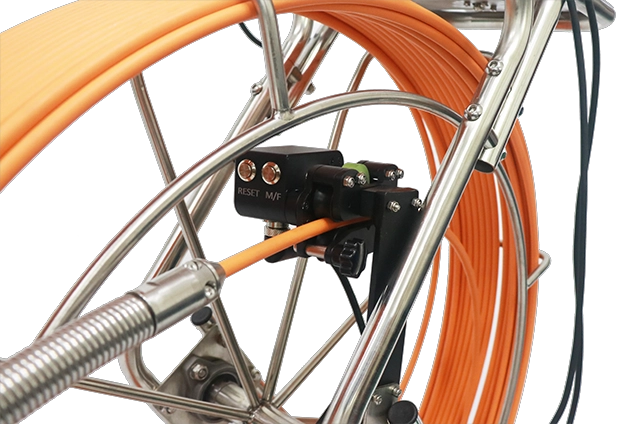

| Digital Meter-Counter | On-screen.error less than 1% |
| Skid | Ø215mm(big skid);Ø130mm(small skid) |
| Packing | |
| Total weight | 12KG |
| Packing carton size | 59x35x69cm;40X30X30cm |
