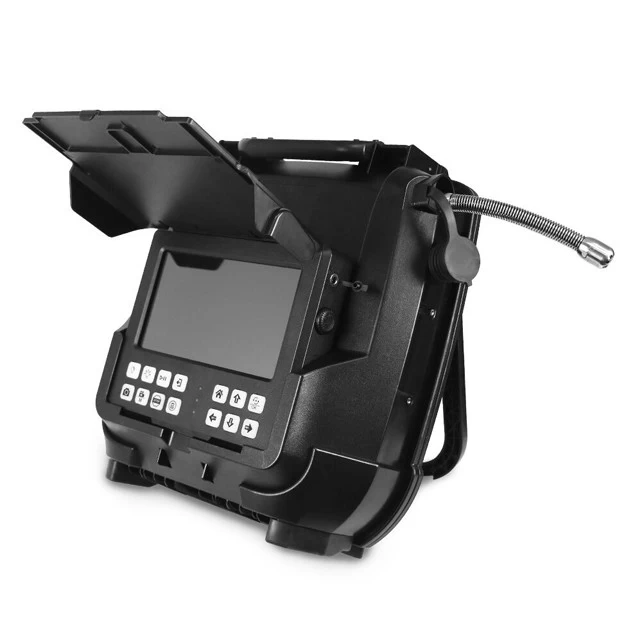

Mini CCTV Drain Sewer Pipe Inspection Camera
- Mini CCTV drain sewer pipe inspection camera PSE10020 comes with the mini 20mm HD video head,HD portable DVR and surface control monitor,flexible fiberglass push rod cable.20mm camera can go 90°bend in DN40mm pipe.Friendly use interface.
Mini CCTV Drain Sewer Pipe Inspection Camera PSE10020
Application:
- Sewer video inspection
- Underground pipe wall inspection
- Building pipe wall inspection
- Underground civil infrastructure project
- Kitchen sink inspection
- Tank interior view
- All other visual applications

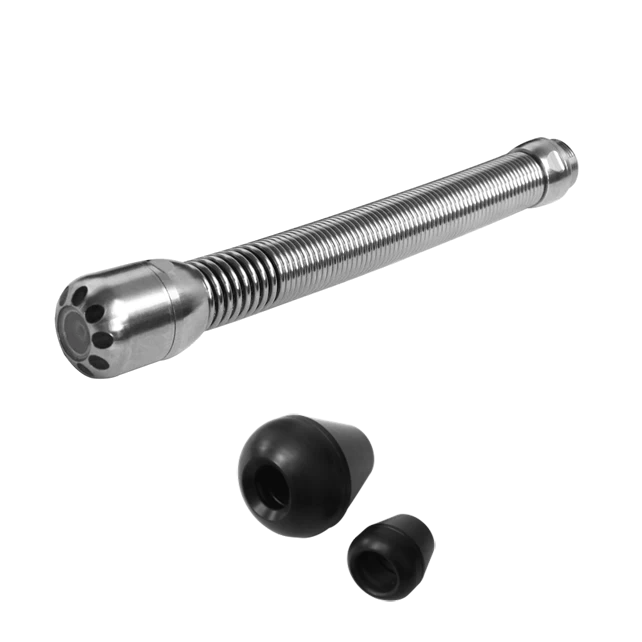

| Mini HD Head | |
| Camera Head Dimension | Ø20mm*26.5mm(L) main body |
| Spring Length | 133.5cm |
| Service for Pipe | Ø30mm-Ø100mm pipe |
| Resolution | 1080P HD Full |
| Sensor | HD module,1/3"CMOS,2MP resolution |
| View Angle | 90° |
| Illumination | Built-in 6pcs led lights |
| Waterproof | IP68 |
| Camera Guide Skid | Ø30mm and Ø50mm |
| Built-in Sonde(Option) | FM512Hz |
| Camera Options | Ø14mm;Ø18mm;Ø23mm;Ø29mm;ØPT33 head |

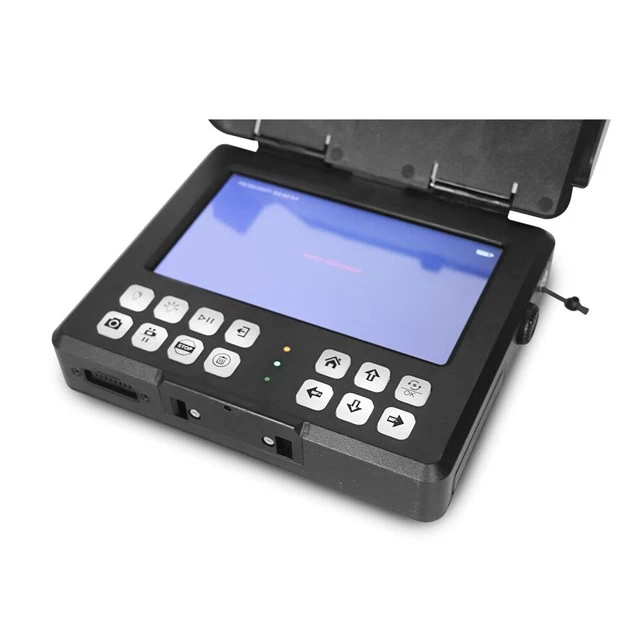

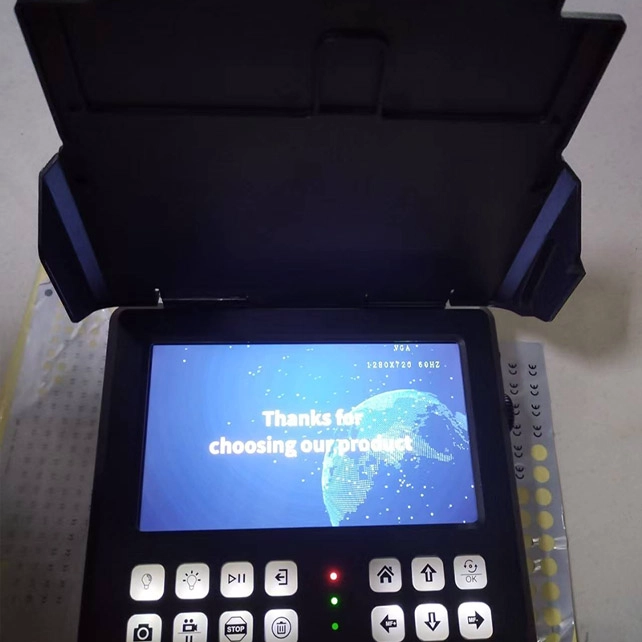

| HD and Portable DVR | |
| HD DVR | with 8"screen;1280*720 resolution |
| Recording | Video/audio recording;photograph capture. |
| Video Formate | MP4 |
| File | Rename file function |
| Control Panel | Waterproof and friendly- use;with night vision buttons. |
| Built-in Battery | Rechargeable 6800mA battery and 6 hours run time;charging time: 8-9 hours. |
| Fibberglass Push Rod | |
| Push Rod Thickness | Ø6mm,and red color |
| Material | Fiberglass rod |
| Length | 20M/30M/35M(max) |
| Removeable Cable Reel | Ø310mm*63.5mm(H) |
| Packing | |
| Packing Carton Dimension | 50cm*48cm*50cm;2pcs inner boxes in |
| Gross Weight | 12KG |
