360 ° drain inspection camera system

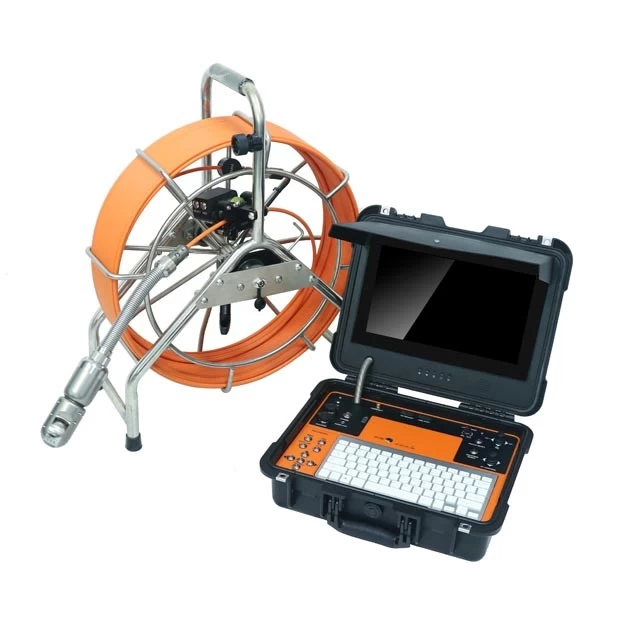

- 1.Drain inspection camera system P10000PT including the PT camera head,60M push rod cable wheel and the 13inch surface control unit.
- 2.Each unit packed by two cartons,packing cartons dimension：
- 1PC (L)59cm*(W)35cm*(H)69cm
- 1PC (L)48.5cm*(W)21.5cm*(H)42.5cm
- 3.Gross weight:20KG
- 4.P10000PT with 33mm and 360° rotation camera( black color Option)
CCTV 360 ° Inspection of inspection camera P10000PT
P10000PT with 33 mm and 360 ° Rotation camera (black color option)
Application:
- Inspection of underground pipelines
- Sewer inspection
- Drainage inspection
- Other visual applications

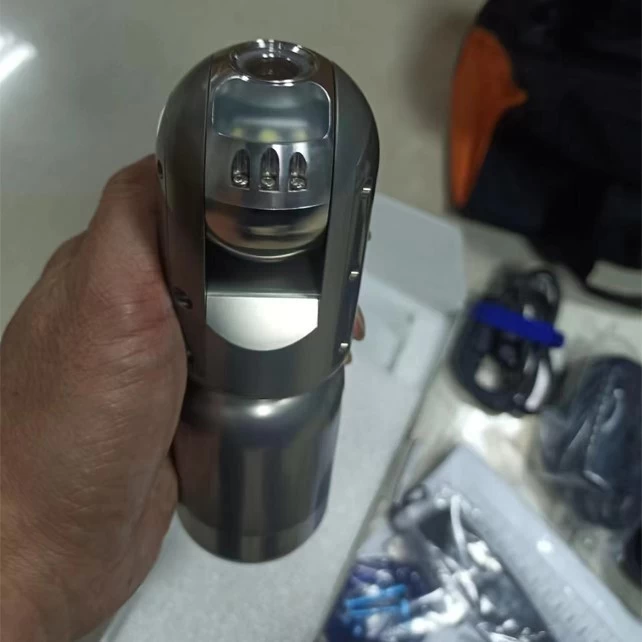

| Head pt50 | |
| Dimension of the head of the camera PT | Ø50 mm*(L) 154 mm;1080p HD full |
| Resolution | 1.3 MP |
| Sensor | 1/3 "CMOS |
| Rotation | Pan: 360 ° tilt:180 ° |
| Angle of view | 120 ° |
| Manual focus | Yes |
| Lighting | Big of 6 integrated pcs,LED lights,available |
| Integrated FM512Hz | (Option) |
| End of the camera | Plug-in Spring connector with pins that helps work on work |
| Window | Sapphire glass |
| Camera housing material | Stainless steel |

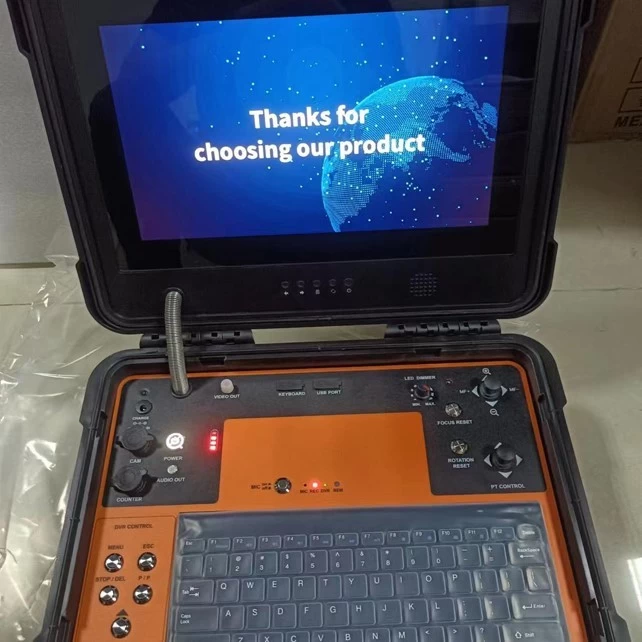

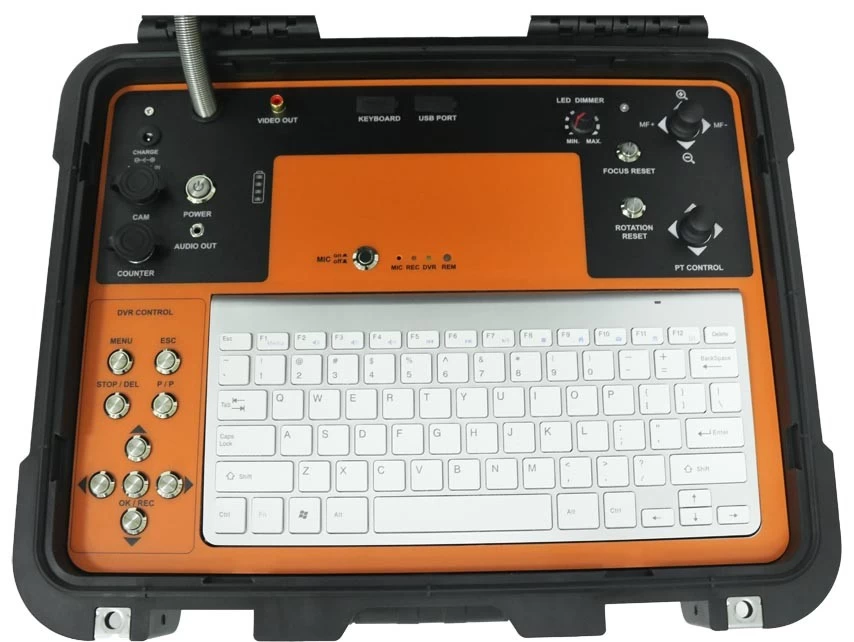

| 13 inches of surface control | |
| Screen | LCD 13 "HD IPS screen with Sunshine visor |
| HD DVR | Video / audio recording,MP4 video format |
| USB blue tooth keyboard | Text recording |
| Two joystickers | One to control the movement of the head PT,the other for the manual concentration |
| Video storage and transfer | USB |
| 5 menu languages | English / French / Chinese / spainst / Polon |
| Power supply | Rechargeable Li-ion battery 8800MA integrated.Time:5 hours. |
| Charge time | 8 hours |
| Charger | AC110V-240V;1.5a |
| Push Push Roard Route | |
| Push the thick rod | Coxial part pusher cable Ø7 mm |
| Length | 60m standard |
| Digital counter | Distance to the screen. Error rate less than 1% |
| Manipulate | Automatically avoid the push rod forward |
| Cable wheel dimension | (L) 510 mm*(w) 250 mm*(h) 640 mm |
| Wheel material | Stainless steel |
| Jerk | |
| # 1 | Ø85 mm |
| # 2 | Ø150 mm |
| # 3 | Ø200 mm |
| Material | ABS plastic |
| Stainless stainless steel stress (option) | |
| Diameter | Stretch diameter from Ø200 mm to Ø450 mm |
| Material | Stainless steel and with ABS 6 pcs plastic wheels |
Photo packaging from P10000PT
