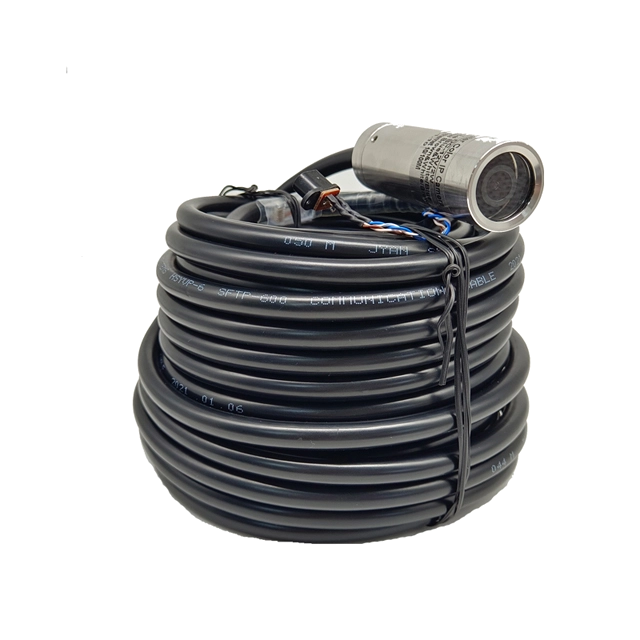

Subsea Minicam

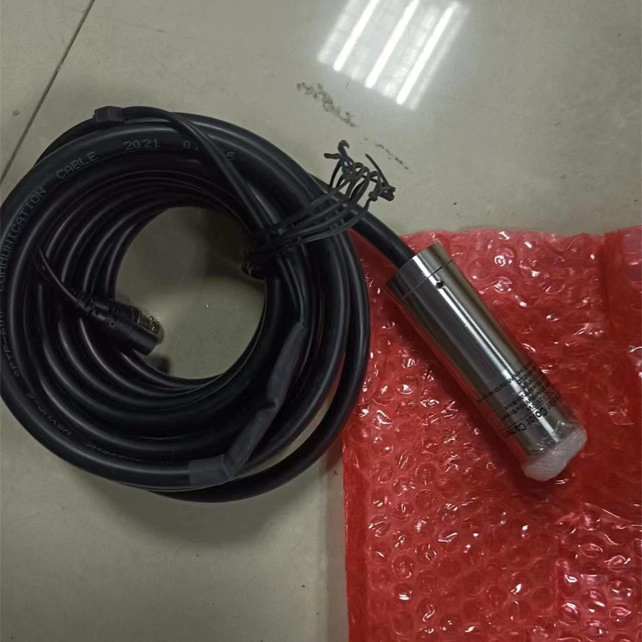

- Subsea minicam D10009 comes with mini dia 30mm camera head,industrial cable,and end joint.
Subsea minicam D10009
Application:
- Shallow seawater inspection
- Fish pen net inspection
- Salmon monitoring system
- Seawater and freshwater research
- Fish farm inspection
- Offshore survey
- Hyrological research
| Camera head | |
| Image Sensor | 2.7 inch 2MP pregressive scan SONY CMOS |
| Effective Pixels | 1080P 1920*1080 |
| Min Illumination | Color 0.5Lux/F1.2 |
| Electronic Shutter | 1/50(1/60)s-1/100,000s |

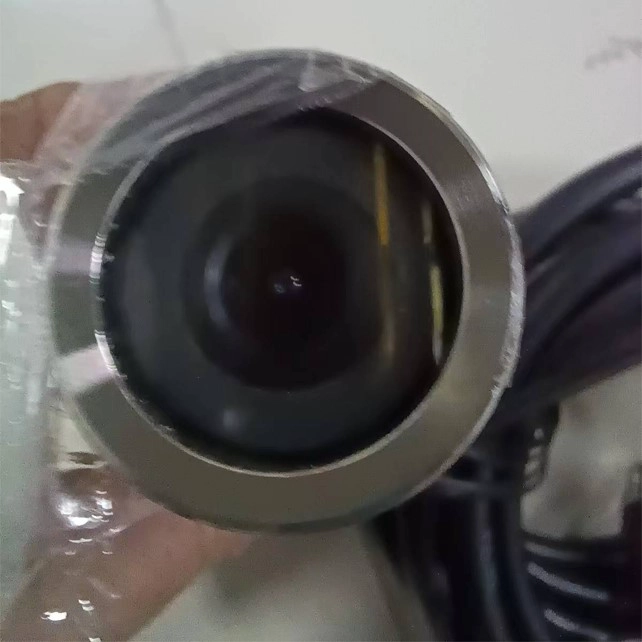

| Lens | 2.5mm/2.8mm/3.6mm fixed lens |
| Lens Mount | M12 |
| Camera Dimension | Ø30mm*80mm(L) |
| Seawater Depth | 30M |
| Camera Housing | Stainless steel 316L |
| Compression | |
| Compression standard | H.265+/H.265/H.264 |
| Video Frames | PAL/NTSC 1080P@25fps/30fps |
| Video stream output | Support adjustable stream 0.1M-10Mpbs |
| Image | |
| Quality | 3D-DNR,BLC,AWB,auto ISO |
| Resolution | Main Stream:1920*1080/1280*720@25fps30fps |
| Sub Stream:640*480/480*360@25fps30fps | |
| Network | |
| Parameter settings | WEB configure and OSD supported,Real time recording, |
| Transmission and playback | |
| Basic | Dual stream,Password protection |
| Protocol | HTTP/Onvif/DHCP/DDNS/NTP |
| Alarm | Support Motion Detection,Linkage Alarm,Linkage Recording |
| Sensor trigger alarm functions | |
| Interface | |

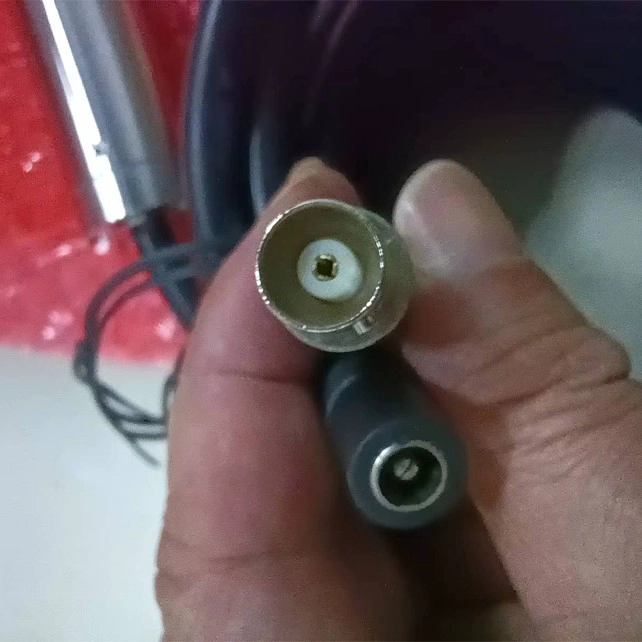

| Video output | RJ45,and tailor-made BNC jack is available |
| Network Interface | 1 RJ45 Ethernet interface,10/100M adaptation |
| Other | |
| Work Environment | -10℃-+60℃ |
| Waterproof Criterion | IP68 |
| Power Supply | POE IEEE802.3at/af |
| Cable | CAT6 |
