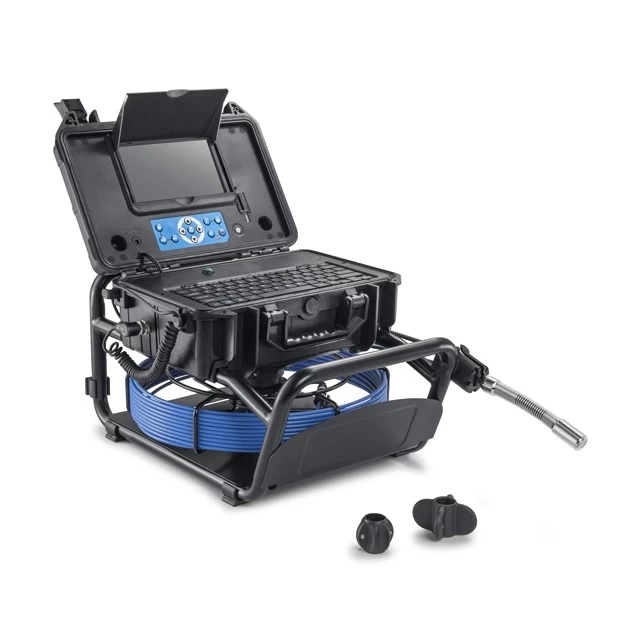

Compact Micro Push Pipeline Inspection Camera System
- 1.Each unit including the HD micro camera head,mounted cable wheel,and 10.1" surface control unit
- 2.One PC packing carton:(L)55cm*(W)44cm*(H)35cm
- 3.Gross weight:12KG

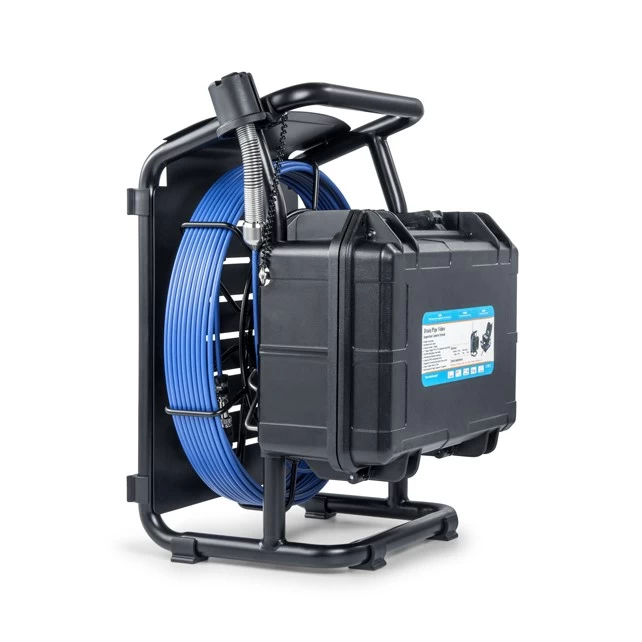

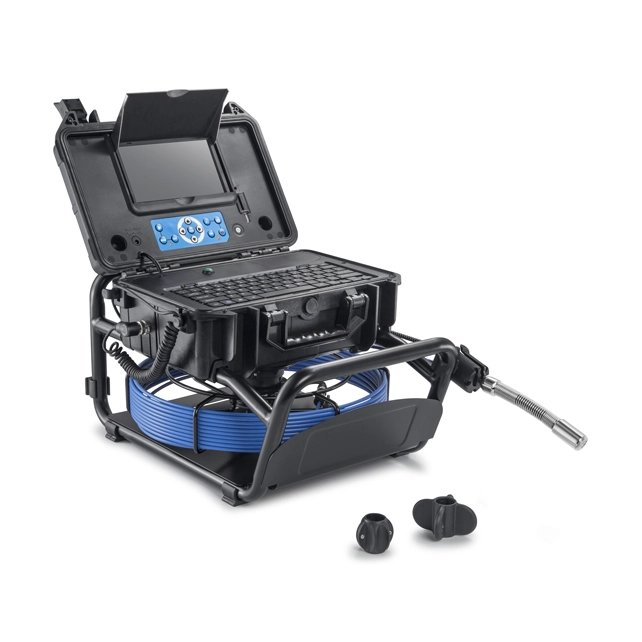

Compact Micro Push Pipeline Inspection Camera System P10001-U
Application:
- Underground pipe inspection
- Sewer inspection
- Drain inspection
- Othe visual applications

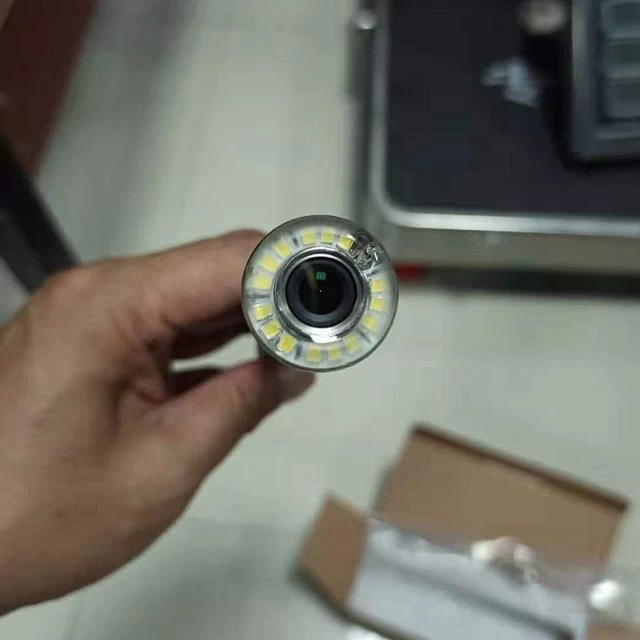

| HD Camera Head | |
| Camera Head Dimension | HD Ø23mm |
| Other Head Options | Extra:HDØ18mm,CommonØ14mm,CommonØ38mm |
| Sensor | 1/3" CCD |
| View Angle | 120° |
| Illumination | Built-in 15pcs Led lights |
| Built-in Sonde | Yes,it is optional |
| Self-Level Function | Yes,it is optional |
| Lens Window | Sapphire glass,anti-scratch |
| Fresh Water Depth | 2Bar(20M).Waterproof IP68 |
| Fcous Distance | 20cm(Approx) |
| Surface Control Unit | |
| Screen | 10.1" or 7" screen |
| HD DVR System | Video/Audio recording.MPEG4 video format. |
| Menu Languages | 9 Menu Languages |
| Blue Tooth Keyboard | Text Recording |
| Video Storage and Transfer | SD Card |
| Power Supply | Built-in rechargeable li-ion battery |

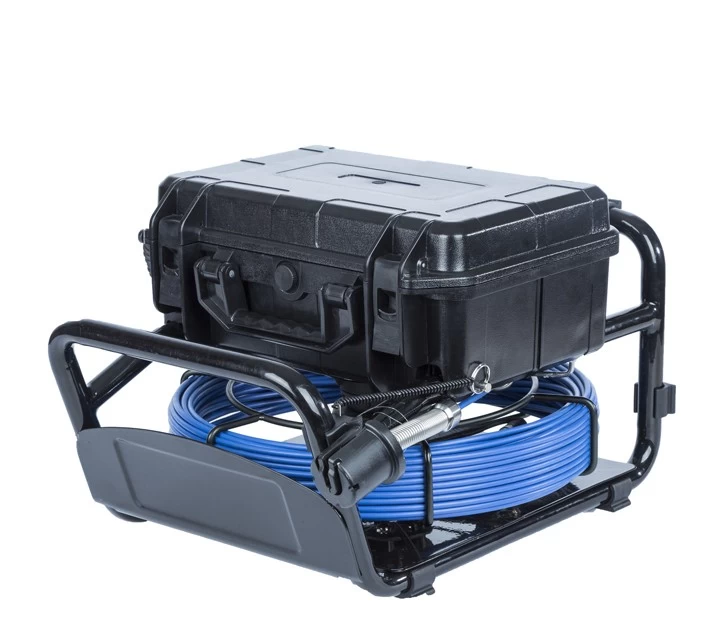

| Mounted Cable Wheel | |
| Push Rod Thickness | Ø6.8mm Red,Ø5.2mm Blue |
| Cable Lenght | 20m/30m/40m |
| Cable Wheel Material | Stainless Steel |
| Wheel Diameter | Ø33mm |
| Digital Meter-counter | Distance On-Screen |

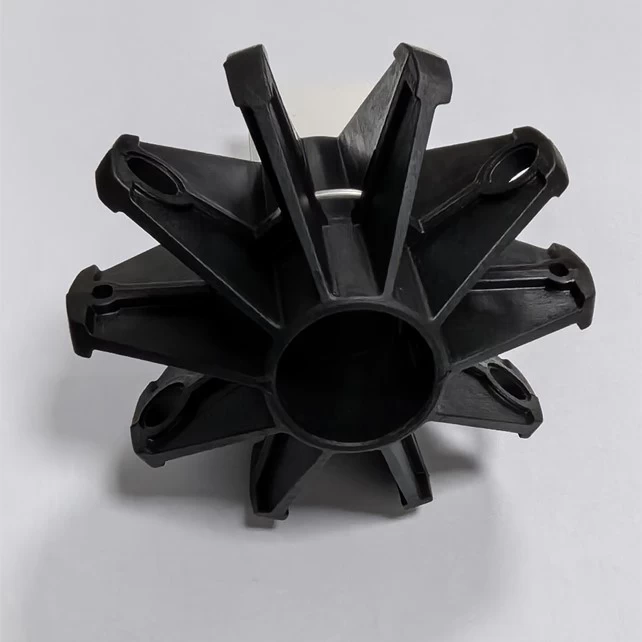

| Centering Skid | |
| #1 | Ø46mm ABS plastic skid |
| #2 | Ø80mm ABS plastic skid |

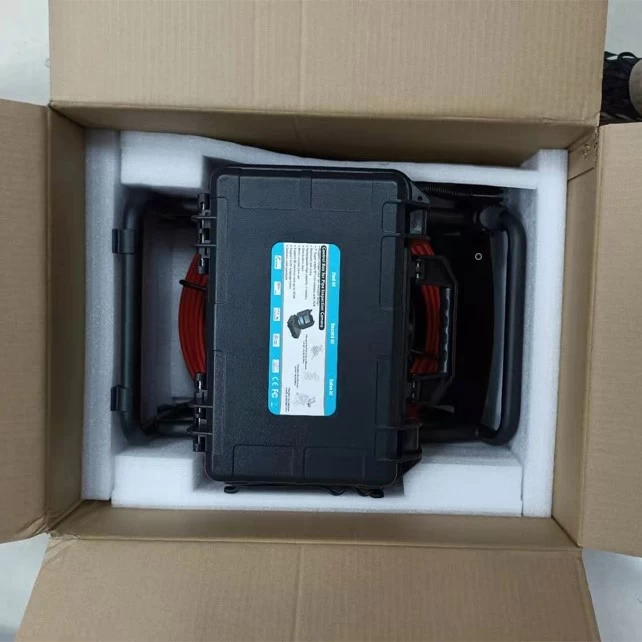

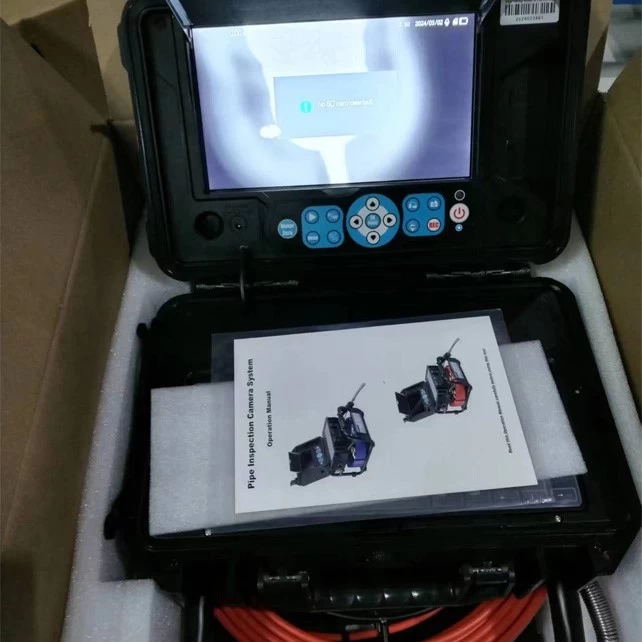

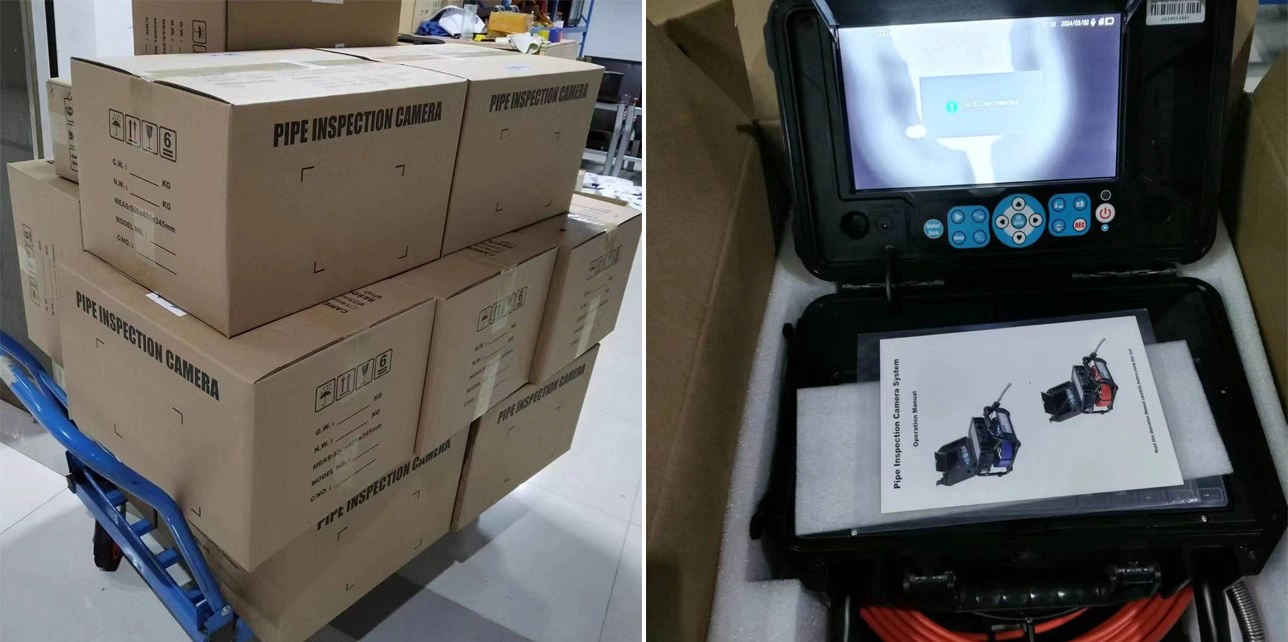

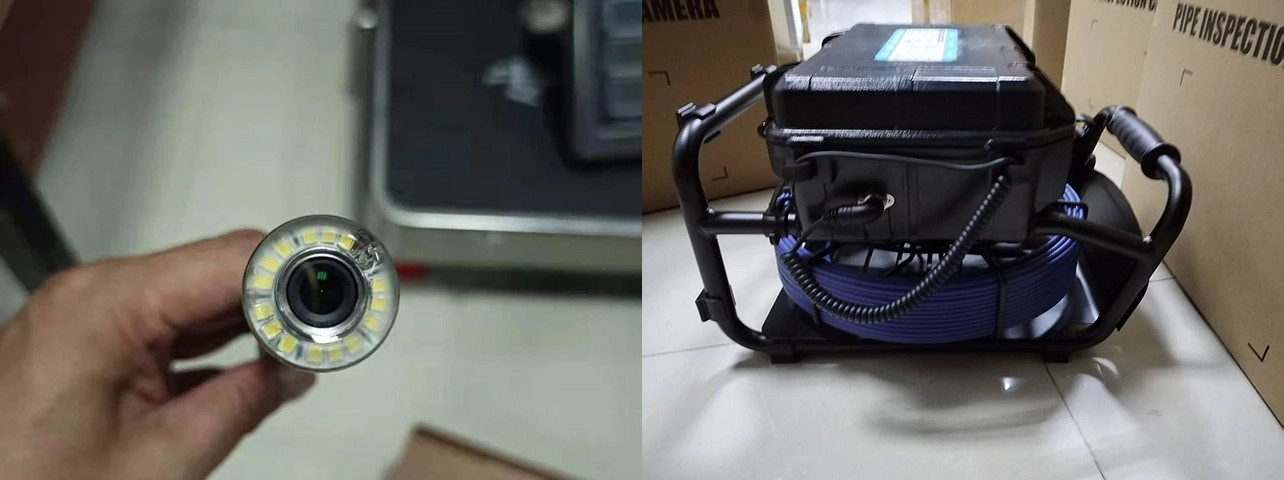

Packing pictures:
