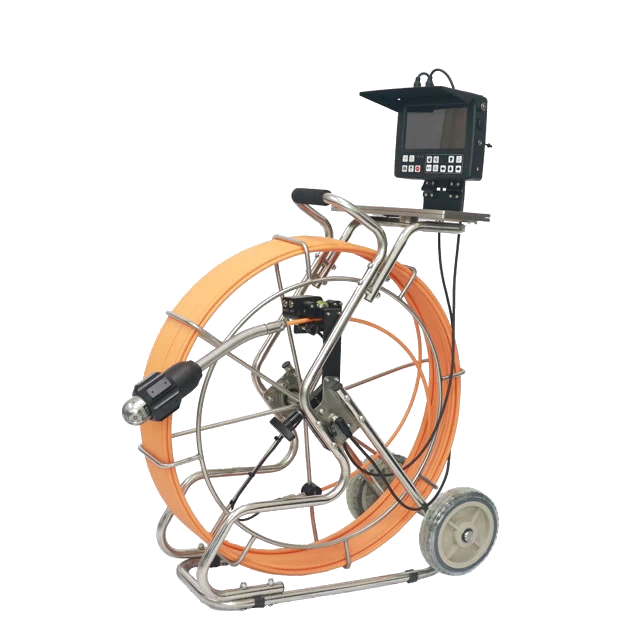

360°Pipe Sewer Inspection Camera System
- 360°Pipe sewer inspection camera system P100002PTCM-1 comes with PT50 head,integrated portable 8" screen and control box,60M/120M pus rod cable.
360°Pipe Sewer Inspection Camera System P100002PTCM-1
Applications:
- Buried pipe wall inspection
- Municipality project of underground
- Underground civil infrastructure
- Rehabiliation of the underground pipe
- CIPP products
- Turbine inspection
- Tank interior view
- Stormwater and sewer pipes inspection
- Kitchen sink inspection
- All other visual applications

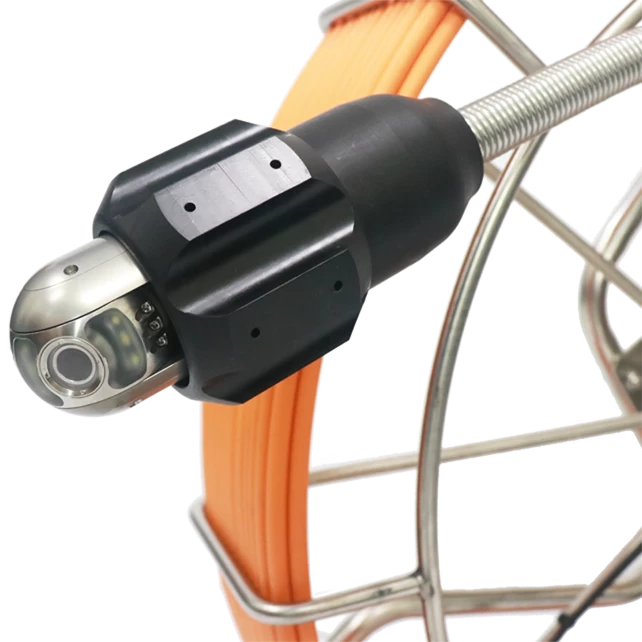

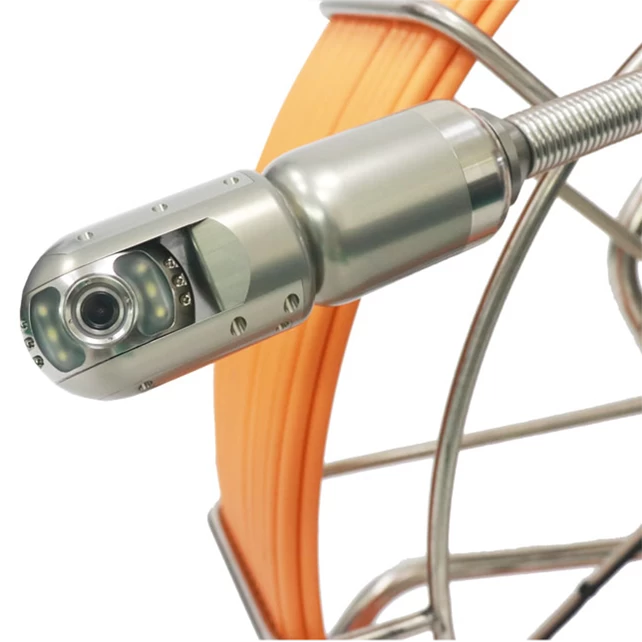

| PT50 head | |
| Camera Head Dimension | Ø50mm*154mm(L) |
| Sensor | 1/3" CMOS sensor |
| Resolution | HD 1.3MP |
| View Angle | 120° |
| Lens Position | Automatic reset |
| Rotation | Pan:360° Tilt:180°;slip scoupling for rotation axle |
| Illumination | Each lens built-in 6 pcs led lights,dimness available |
| Camera Waterproof | IP68,freshwater depth:10Bar(100M max) |
| Camera Housing Material | Stainless steel |
| Lens Window | Sapphire Glass |

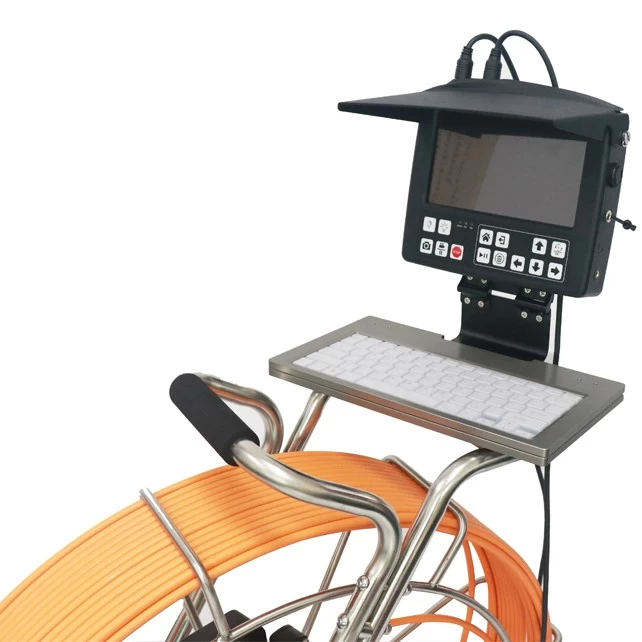

| Multi-function DVR | |
| HD DVR | with 720P video recording;Video/audio recording |
| Video Format | AVI / MP4 |
| Text Recording | with USB wireless keyboard for typewritig |
| Storage | USD flash disk(16G max) |
| Screen | 8" HD IPS LCD screen;1280*720 resolution,16:9 display model;waterproof; |
| Panel | Waterproof |
| Sunshade | Included |
| Built-in Battery | 7000mA rechargeable li-ion battery;run-time:4 hours;charging time:7 hours. |
| Charger | AC110V-240V,1.5A |
| Battery Level Indicator | on screen |
| Box Size | 23cm*20cm*5cm |
| Push Cable | |
| Material | Fiberglass push rod |
| Thickness | Ø9mm,and Ø11mm |
| Digital Meter-Counter | Error less than 1%;distance on-screen |
| Stainless Steel Wheel Size | 70cm*28cm*84cm |
| Reel Brake | Available |
| Tray | With an stainless steel tray on the wheel for lay the DVR and keyboard,keyboard with 360 ° rotation |
| Skids | Ø85mmØ150mmØ200mm skids |
| Skis (Option) | Ø200mm-Ø450mm adjustable stainless steel skid |
