Sewer TV Cameras

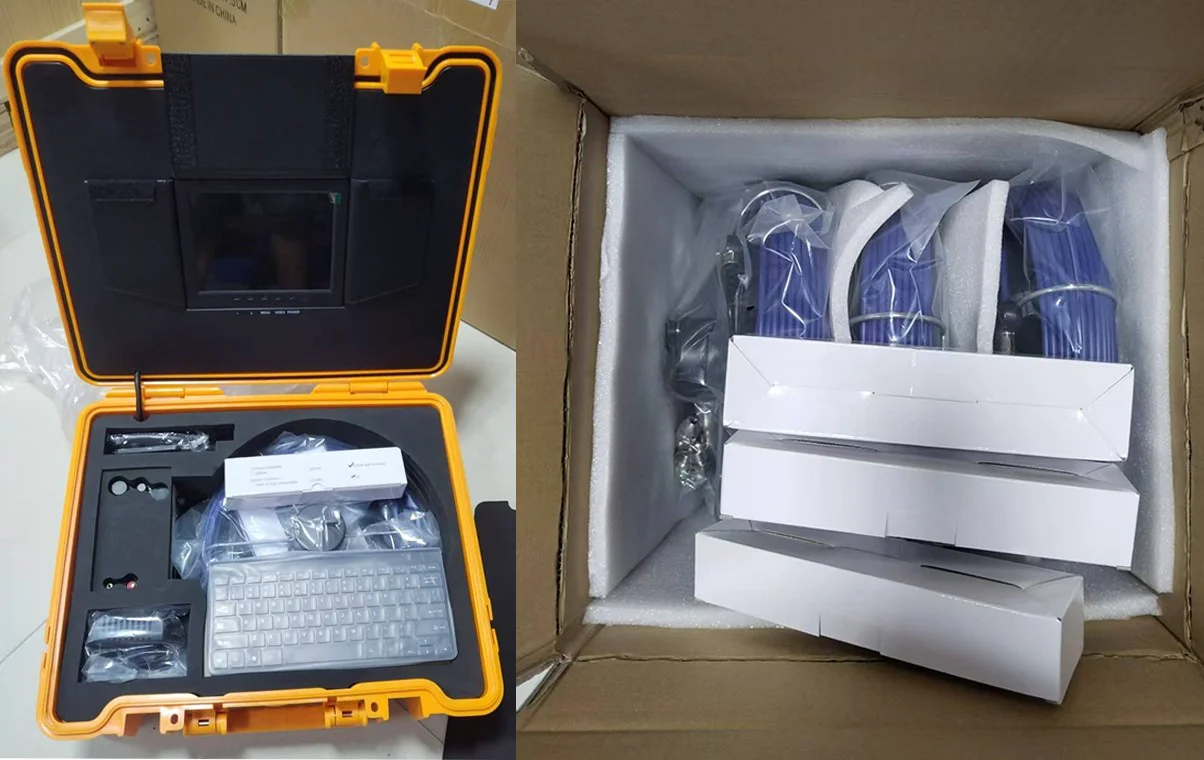

- Sewer TV cameras comes P10000DK-AHD with surface control console, push rod cable and the AHD 23mm camera head
Sewer TV cameras P10000DK-AHD
Application:
- Buried pipe wall inspection
- Sewer drain inspection
- Stormwater and sewer pipe wall survelliance
- Kitchen sink inspection
- Buried utility survey
- Undground civil infrastructure inspection
| Camera head | |
| Head dimension | Ø23mm*45mm(L) |
| Sensor | 1/3 inch sensor |
| Resolution | AHD 1.3MP |
| Total pixles | 1280(P)*720 |
| Waterproof | IP68 |
| Illumination | Built-in 12 pcs led lights |
| Camera housing | Stainless steel |
| Built-in DVR unit | |
| Hidden DVR | All DVR control unit built-in the monitor board, compact design |
| Input | Video input and encoder input |
| Video storage | USB flash driver(1TB max) |
| Text recording | Wireless keyboard |
| Dimness | Led dimness knob |
| Selection | HD DVR video /Photo selection available |
| Microphone | On/off microphone control button |
| Buttons | On/Off/Up/Down buttons |
| Screen | 10" screen,1280*720 resolution,16:9 display model. |
| Other | Sunshield and remote control inclueded |
| Built-in battery | 8800mA rechargeable li-ion battery,with power switch |
| Run time | 8-10 hours; charging time:6 hours |
| Charger | AC110V-240V, 1.5A charger |
| ABS case | |
| ABS suitcase dimension | 52cm(L)*43.5cm(W)*10cm(H) |
| Working temperature | -10℃-50℃，RH95%max |
| Storage temperature | -10℃-70℃，RH95%max |
| More option of the camera head | |
| Option1 | with AHDØ23mm camera head with self-level function |
| Option2 | with AHD Ø23mm camera head with built-in sonde |
| Optipn3 | with AHD Ø29mm self-level camera head |
| Option4 | with common Ø18mm camera head |
| Option5 | with extra cable wheel+common Ø14mm camera head |
