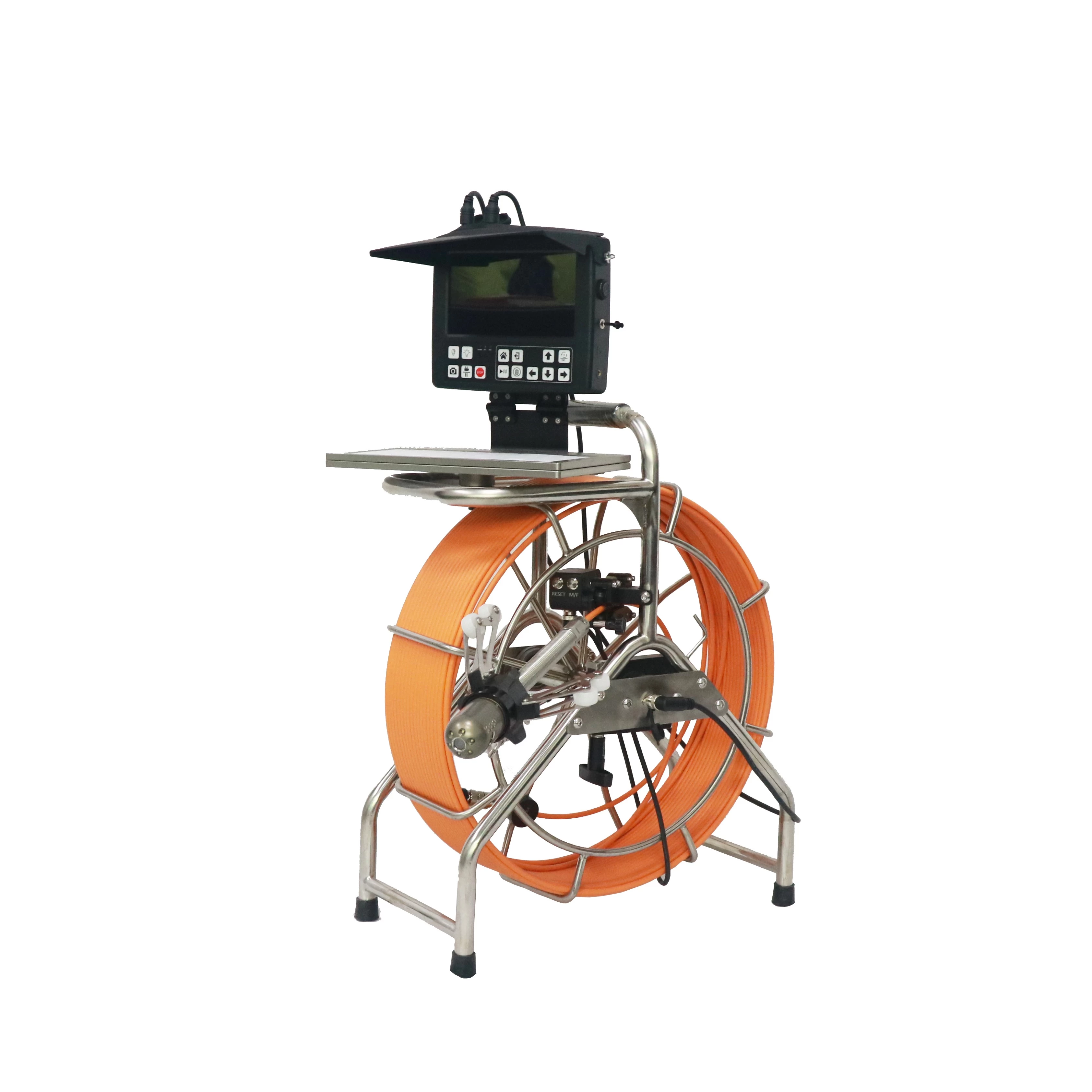

Dual Lens and 360° Pipe Inspection Camera System
- Dual lens and 360°rotation pipe inspection camera system P10004-Dual-M comes with dual lens camera head,push rod cable and the surface control unit with display.Friendly use surface and rugged design.
Dual Lens and 360° Pipe Inspection Camera System P10004-Dual-M
Applications:
- Buried utility survey
- Buried pipe wall inspection
- Underground civil infrastructure survillance
- Stormwater and sewer pipe inspection
- Drain pipe inspection
- All other visual applications

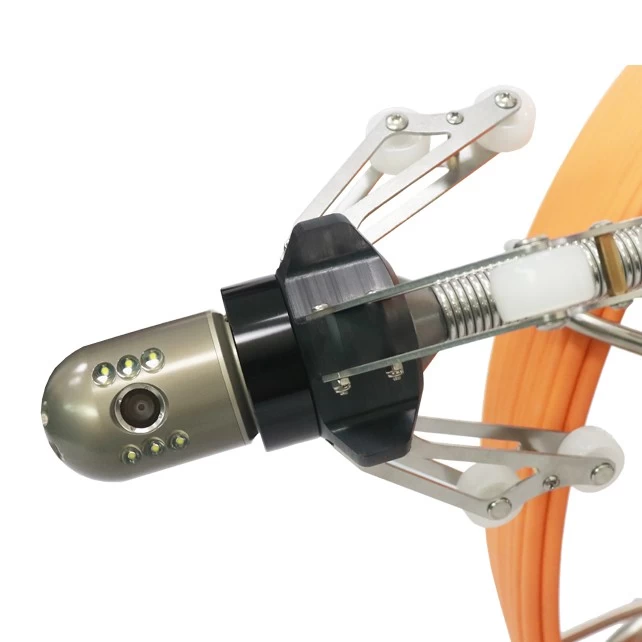

| Dual and Rotation Camera Head | |
| Camera Head Dimension | Ø45mm*107mm(L),sensor 1024*768V |
| Rotation | Side lens with 360°rotation endless |
| Illumination | Built-in 6pcs white led lights(Side lens) |
| Built-in 6pcs white led lights(Down lens) | |
| View Range | Horizontal 101° |
| Waterproof | IP68,freshwater depth:30M max |
| Lens Window Glass | Sapphire Glass |
| Skid | Ø85mm solid skid |
| Option1 | Built-in FM512Hz sonde |
| Camera Option1 | PT50 camera head |
| Camera Option2 | PT33 camera head |
| Portable Control Unit | |
| HD DVR | Recording 720P |
| Video Format | AVI |
| Recording | Video/audio/text recording |
| Keyboard | USB wireless keyboard real time typewritting |
| Storage | USB flash disk (16G max ) |
| 8"HD IPS Screen | 1280*720 resolution,16:9 display model |
| LCD Panel | Waterproof |
| Sunshade | Included |
| Built-in Battery | 7000mA rechargeable li-ion battery. Run-time:4 hours. Charging time:7 hours. |
| Battery Level Indicatoion | On-screen |
| Charger | AC110V-240V,1.5A power charger |
| Control Box Size | 23cm*20cm*5cm |

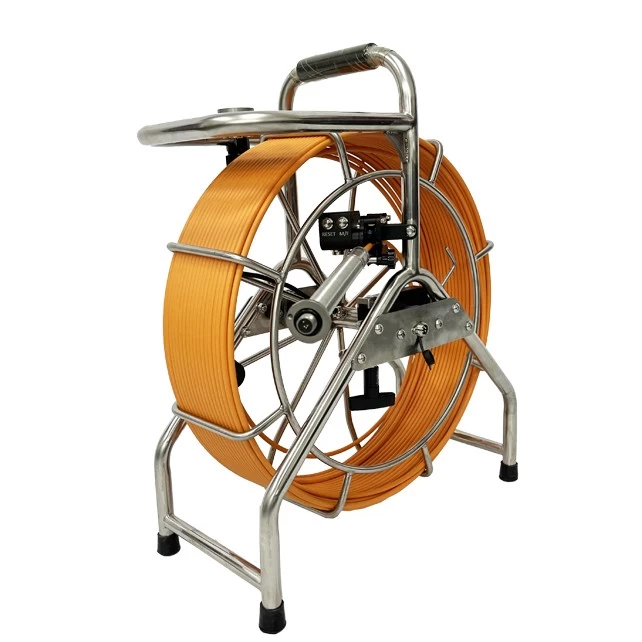

| Push Cable | |
| Cable Material | Fiberglass Rod / Orange color |
| Cable Thickness | Ø9mm or Ø11mm |
| Cable Length | 60M/120M |
| Cable Wheel Size | 700mm(L)*280mm(W)*840mm(H) |
| Reel Brake | Available |
| Digital Meter-Counter | On-screen.error less than 1% |
| Two Pcs Packing Cartons | 59cm*39cm*69cm;40cm*30cm*30cm |
| Gross Weight | 18KG |
