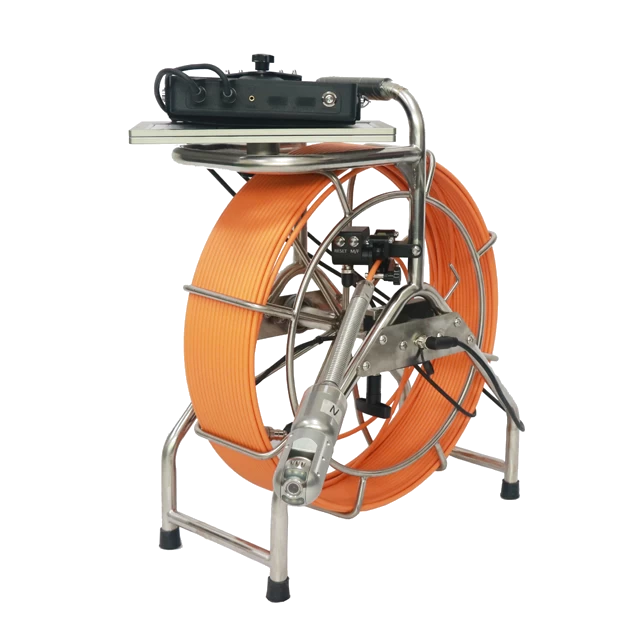

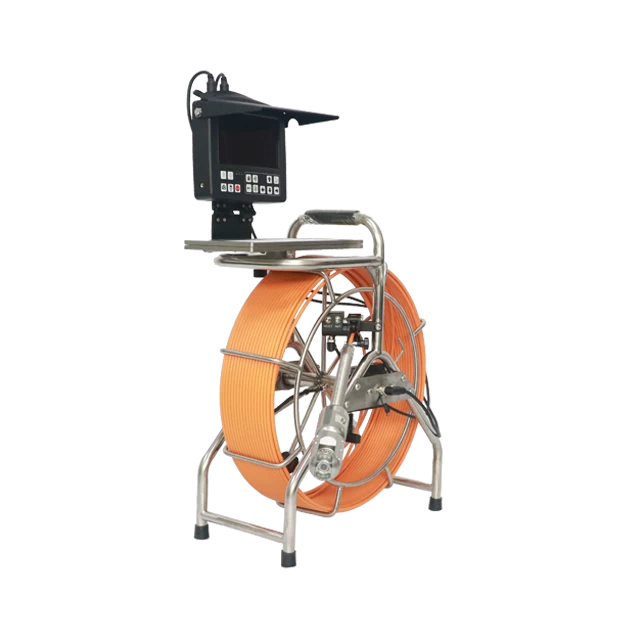

360° Compact Sewer Inspection Camera
- 360° compact sewer inspection camera P10006PTCM comes with PT50 head,integrated and portable 8"screen control box,60M push rod.
360° compact sewer inspection camera P10006PTCM
Applications:
- Buried pipe wall inspection
- Municipality project of underground
- Underground civil infrastructure
- Rehabiliation of the underground pipe
- CIPP products
- Turbine inspection
- Tank interior view
- Stormwater and sewer pipes inspection
- Kitchen sink inspection
- All other visual applications

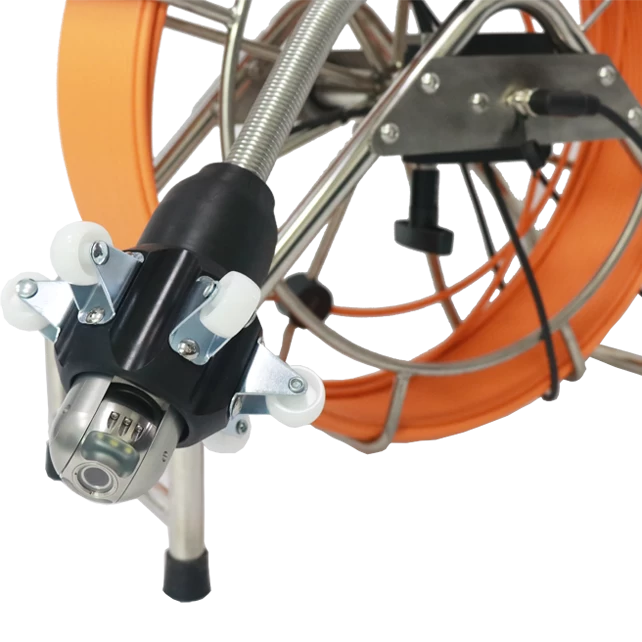

| HD PT50 Head | |
| Camera head dimension | Ø50mm*154mm(L) |
| Sensor | 1/3" sensor, |
| Resolution | HD 1.3MP pixles. |
| Waterproof | IP68, fresh water depth: 100M max |
| View angle | 120° |
| Lens | Position automatic reset |
| Rotation | Pan:360° Tilt: 180°；Slipcoupling for rotation axle. |
| Illumination | Built-in 6 pcs white led lights.Dimness |
| Camera Housing Material | Stainless steel |
| Lens windows | Sapphhire glass |
| Skids | Ø85mmØ150mmØ200mm |
| Skid option1 | Ø200mm-Ø450mm adjustable stainless steel skid |
| Camera option1 | PT33 head |

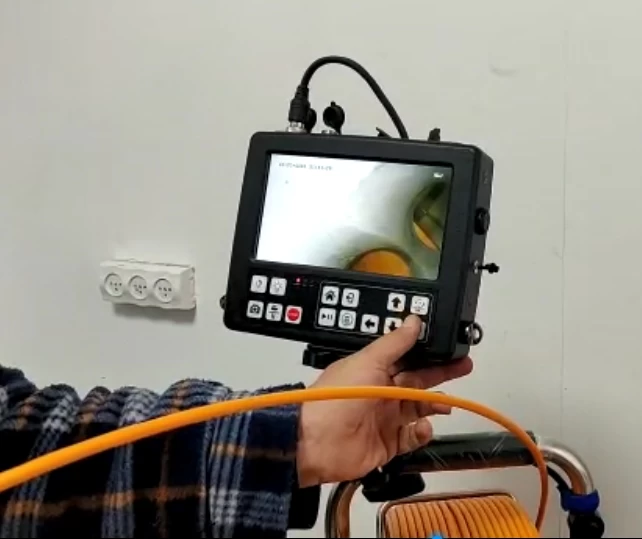

| Portable control unit | |
| HD DVR | HD DVR system with 720P video recording |
| Video format | AVI/MP4 |
| Recording | Video/audio/ text recording |
| Keyboard | USB wireless keyboard real time typewritting |
| Storage | USB Flash disk(16G max) |
| 8"HD IPS LCD screen | 1280*720 resolution,16:9 display model |
| LCD PANEL | Waterproof |
| Sunshade | Included |
| Built-in battery | 7000mA rechargeable li-ion battery;run-time:4 hours, charging time: 7 hours/ |
| Battery level indication | On-screen |
| Chager | AC110V-240V,1.5A |
| Portable control box size | 23CM*20CM*5CM |
| Push Cable | |
| Cable thickness | Ø6mm |
| Cable length | 60M |
| Cable material | Fiberglass rod/ orange color |
| Stainless steel wheel | With an tray for lay the keyboard,screen and keyboard can 360°rotation |
| Reel Size | 510MM(L)*250MM(W)*640MM(H) |
| Digital meter-counter | On-screen, error rate less than 1% |
| 2PCS Packing cartons | 59cm*39cm*69cm;40cm*30cm*30cm |
| Gross weight | 20KG |
