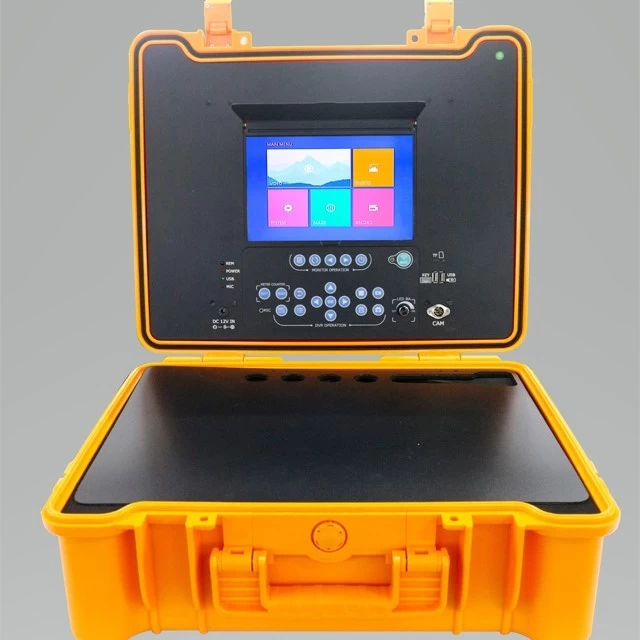

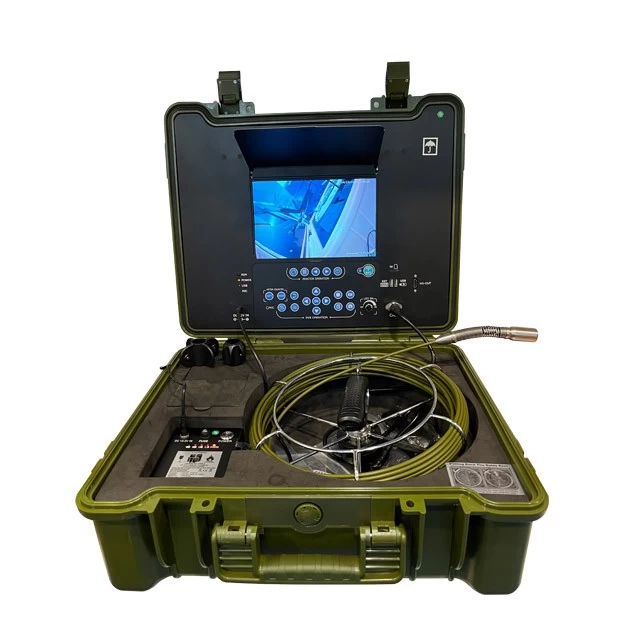

HD Pipe Wall Inspection Camera System
- 3188DH push rod pipe inspection camera system with HD 1080P full HD 23mm camera head and wifi function.H.264 video/audio recording.
HD Pipe Wall Inspection Camera System
Applications:
- Pipe wall inspection
- Sewer video inspection
- Drain survey
- Kitchen sink inspection
- Underground civil infrastructure service
- All the other visual projects
| 1080P full HD camera head | |
| Camera Head Dimension | Ø23mm |
| Self-Level | Yes |
| Built-in FM512Hz Sonde | Yes |
| Sensor | 1/3inch CMOS |
| Resolution | 1920(H)x1080(V) |
| Focus Lens | 10cm |
| White Balance | Automatic |
| Gain Balance | Automatic |
| Illumination | Built-in 9pcs led lights |
| Signal to Noise Ratio | >52dB(AGC,OFF) |
| Video Output | 1.0Vp-p/75R |
| Input Voltage | DC3.3V-5V |
| Current Comsumption | 110mA |
| Frame Rate | 30FPS/25FPS |
| Centering Skid | Ø45mm white POM skids |
| Cable Wheel | |
| Push Rod Thickness | Ø5,2mm |
| Cable Length | 20M/30M/40M |
| Digital Meter-Counter | Yes. |
| Suitcase and DVR | |
| Screen | 10.1" LCD |
| Video/Audio Recording | H.264 |
| Storage | TF card and USB disk / support 256G max |
| Keyboard | Text recording |
| DVR | HD |
| OSD Language | English/Chinese/French/Spanish/German/Polish/German/Korean/Italian/Turkish/Russian |
| Built-in Li-ion Battery | 12V 6600MAH/Rechargeable |
| Charger | AC110V-240V/DC13.5A1.7A |

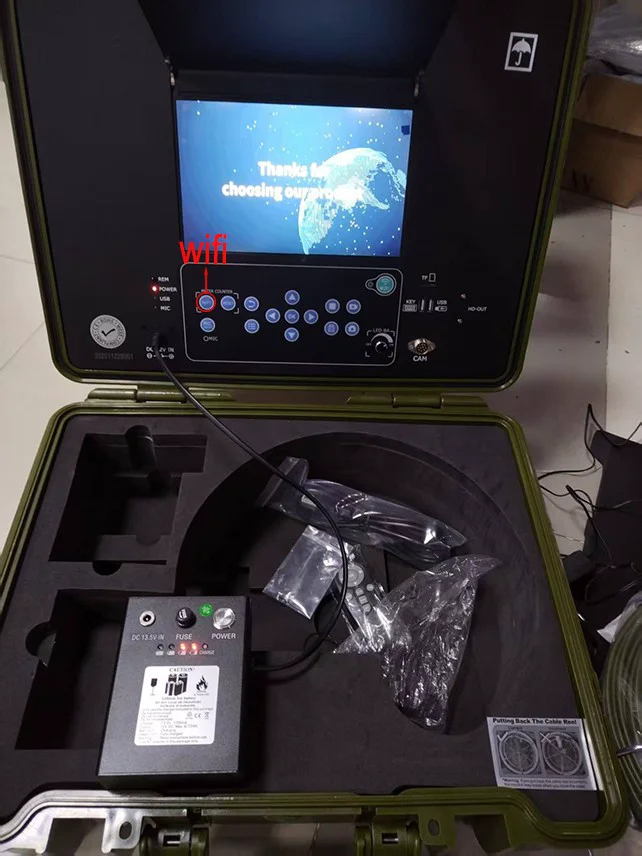

| Wifi Function | Phone can view the video |

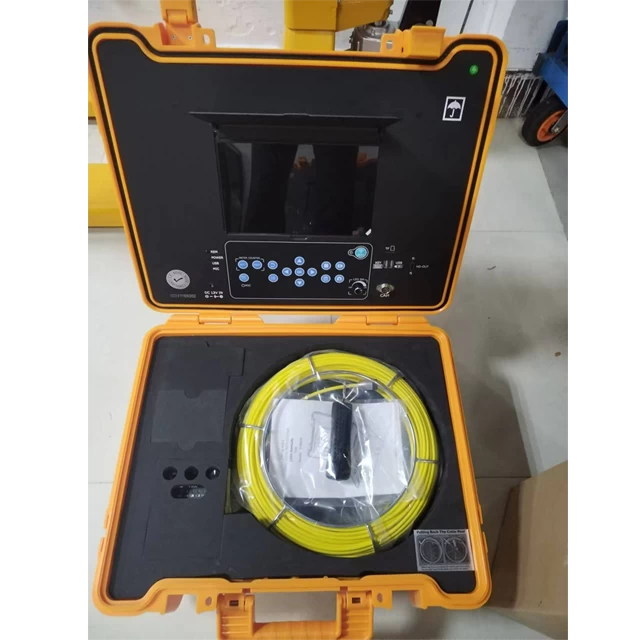

Packing(3188DH with WIFI fuction):
