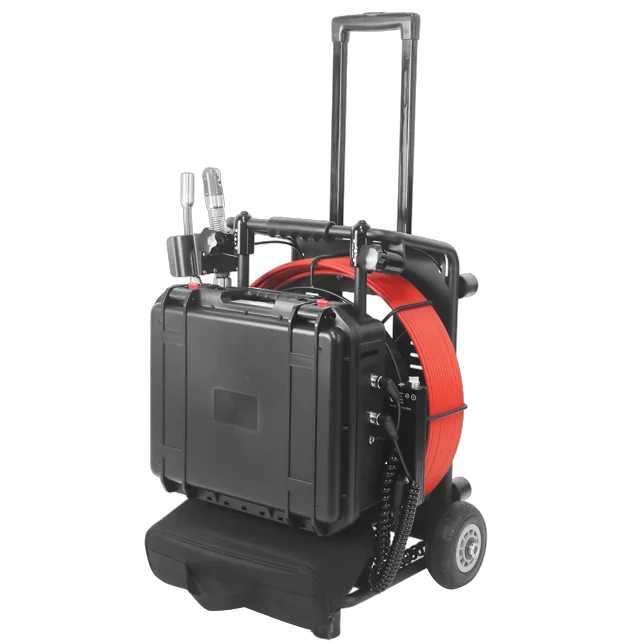

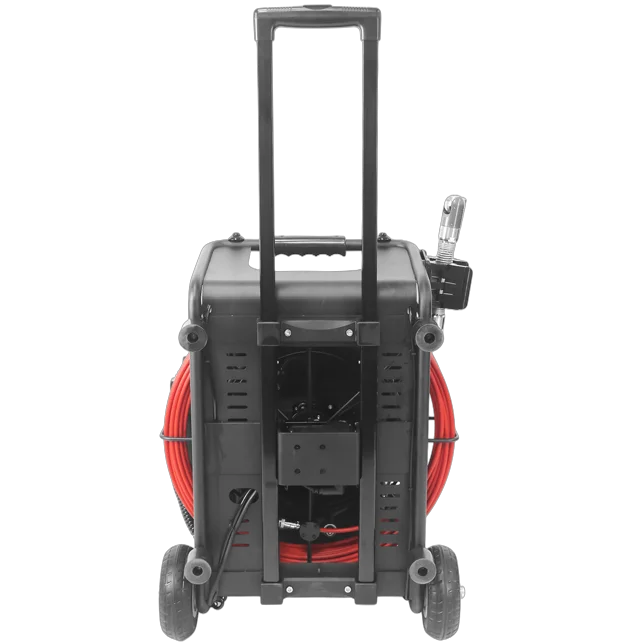

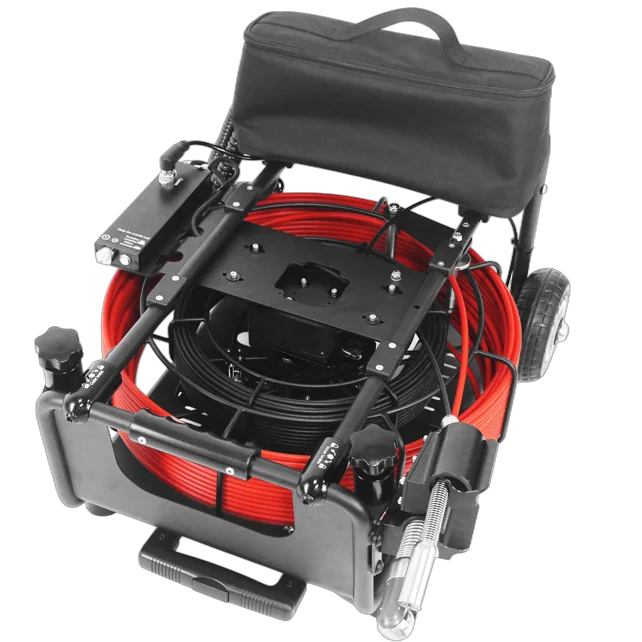

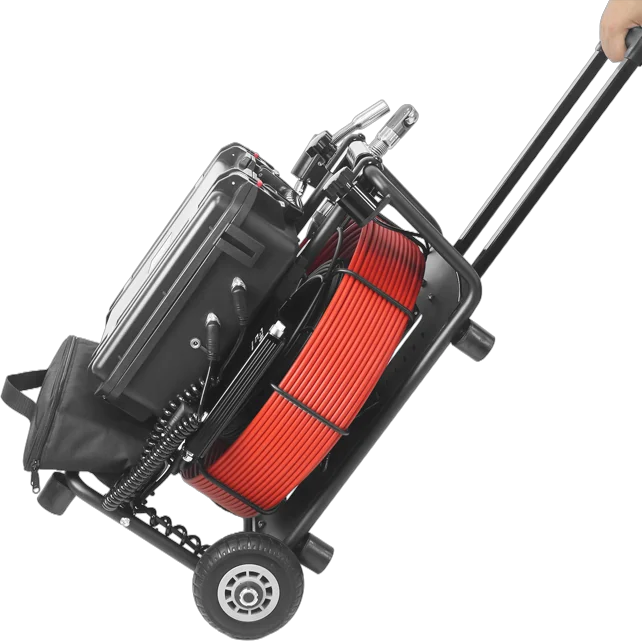

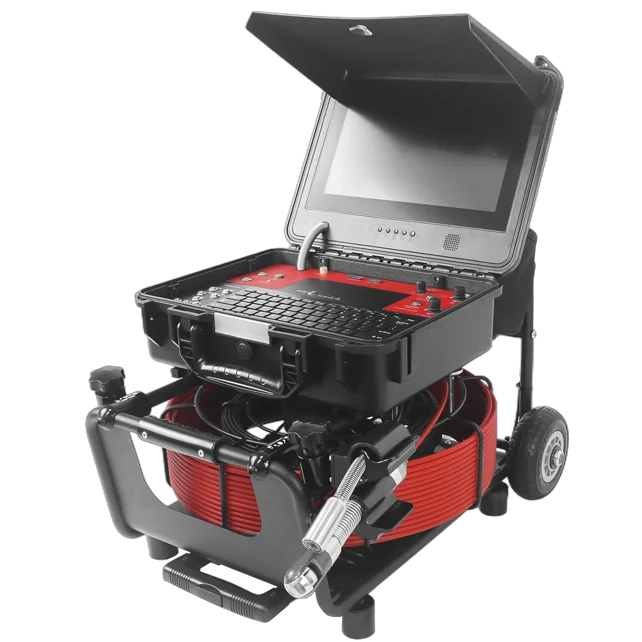

HD and Double Wheels Pipe Inspection Camera System
- The pipe inspection camera system P100PTF-UD2 system integrates dual HD cameras,a surface control unit(which is detachable from the cable drum),and a portable drum with pull rod for easy transport and operation.
HD and Double Wheels Pipe Inspection Camera System P100PTF-UD2
Application:
-
Sewer pipe and wall inspection
-
Underground pipe wall inspection
-
CCTV drain pipe sewer inspection
-
All other confined spaces
Detail Spec of the P100PF-UD2
| Camera#1: 360° ratation head | Camera#2: Fixs lens | |
| Head Dimension |
33mm*225.7mm(L)
|
23mm*68mm(L) |
| Sensor | 1/3" sensor | 1/3" CMOS sensor |
| Resolution | 1080 full HD | 1080 full HD |
| Rotation | Pan:360° ,Tilt:180° | |
| View Angle | 120° | 120° |
| Waterproof | IP68 | IP68 |
| Built-in Sonde | FM512Hz | |
| Illumination | Intergrated 4pcs led lights (dimness) | Intergrated 12pcs led lights (dimness) |
| Freshwater Depth | 50M | |
| Manual Focus | Yes | |
| Surface Control Unit | ||
| Screen | 13" HD IPS LCD screen | |
| HD DVR System | Video,audio recording and photography function | |
| Control Panel Colour | Red and black | |
| Keyboard | USB wireless keyboard real time typewritting | |
| Power Supply | Built-in 8800mA rechargeable li-in battery pack | |
| Battery Level | Yes | |
| HDMI Jack | Available that compatible with another monitor | |
| Other | Detachable from the cable wheel drum | |
| Cable#1(inner) | Cable#2(outer) | |
| Push Rod Cable Thickness | Ø5.2mm black push road cable | Ø7mm red push road cable |
| Reel Size | 30cm*30cm | 45cm*45cm |
| Cable Length | 40M | 60M |
| Digital Meter-Counter | Yes | Yes |
| Feature | Work with fix les | Work with PT head |
| Cable drum with two reels and pull rod to carry | ||

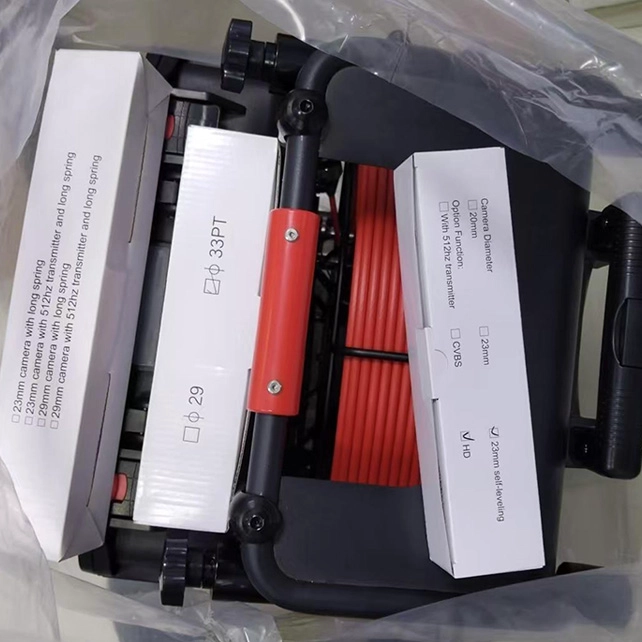

| Packing | ||
| Net Weight | 17KG | |
| Packing Carton Dimension | 69cm*53.5cm*49cm | |
