Digital Subsea Video Camera

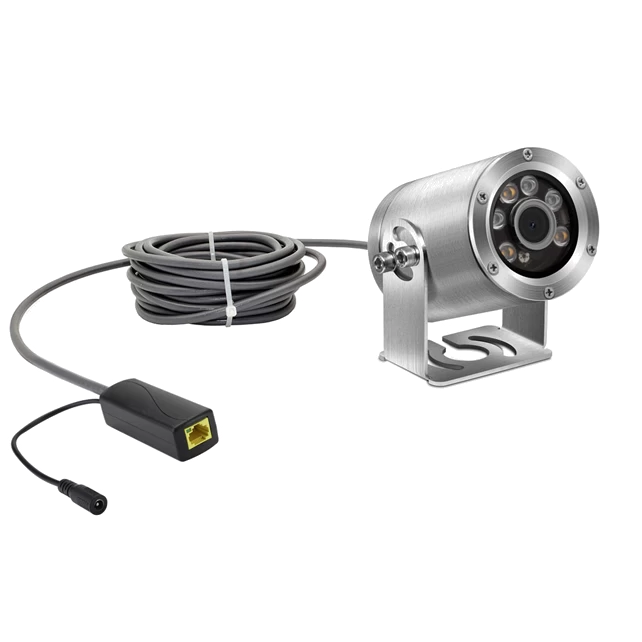

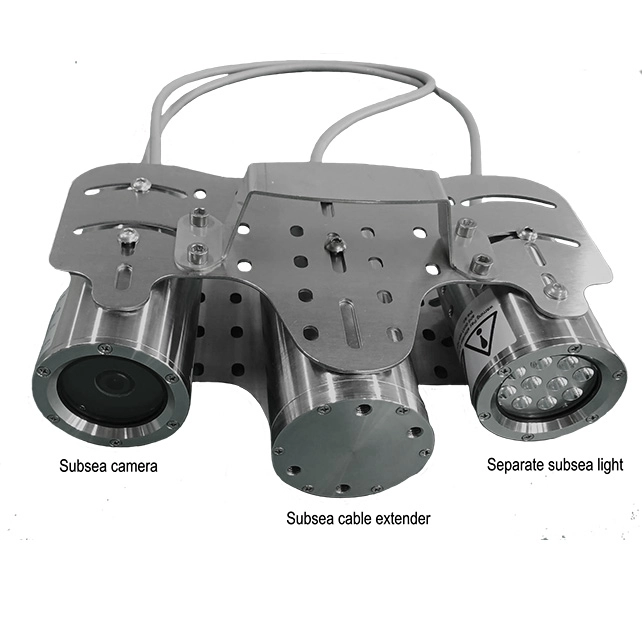

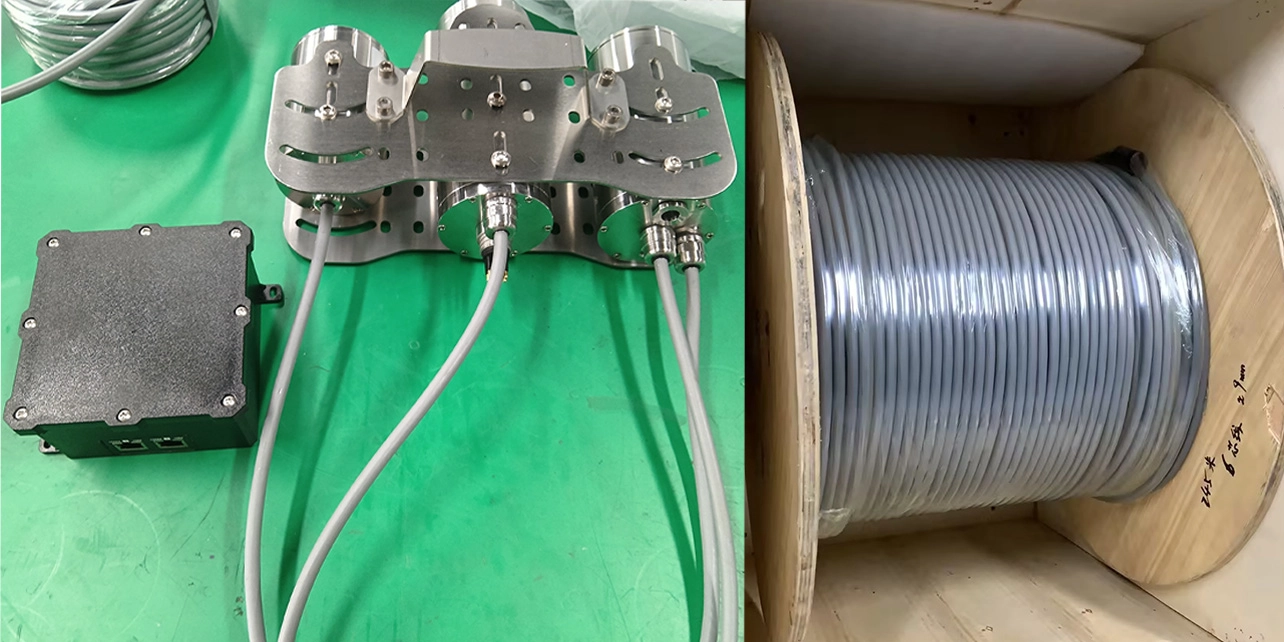

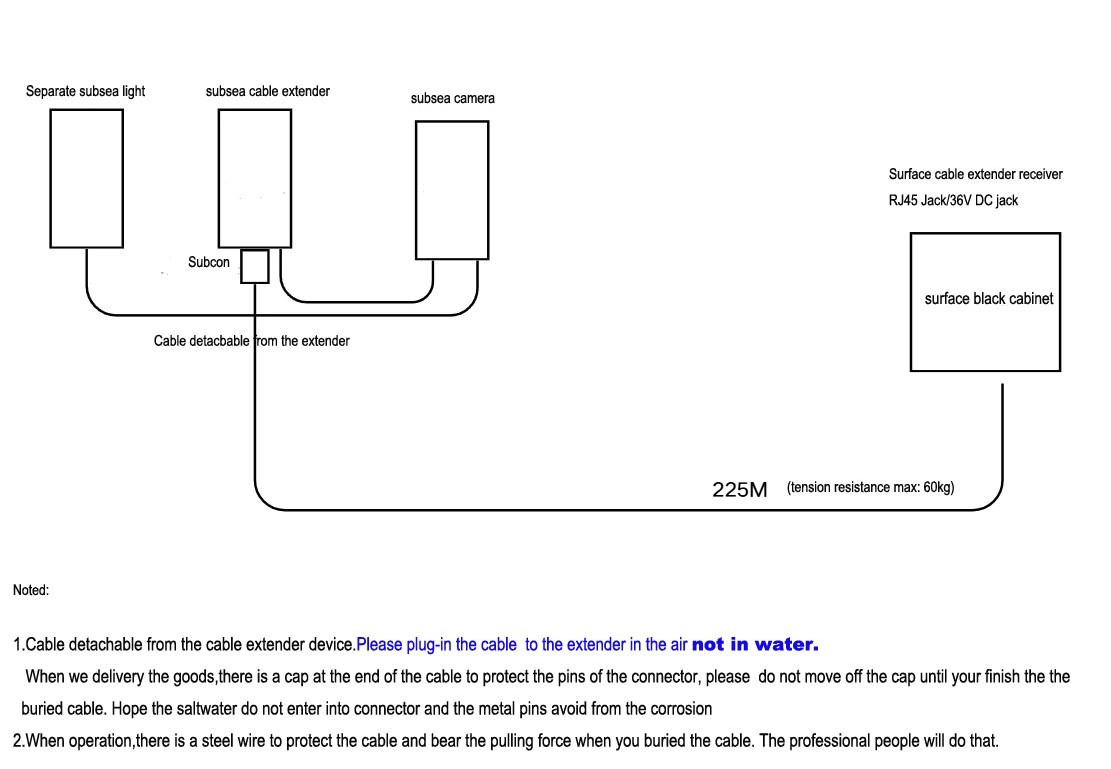

- Digital subsea video camera DZ10010-SS(UW-S5-3CX) comes with subsea video camera head, cable and the joint .
Digital subsea video camera DZ10010-SS(UW-S5-3CX)
Application:
- Marine farm inspection
- Fish pen net inspection
- Offshore survey
- Analusis of the underwater ecosystem
- Seawater and freshwater research
- Hydrological research
- Subsea survey
- Another visual applications

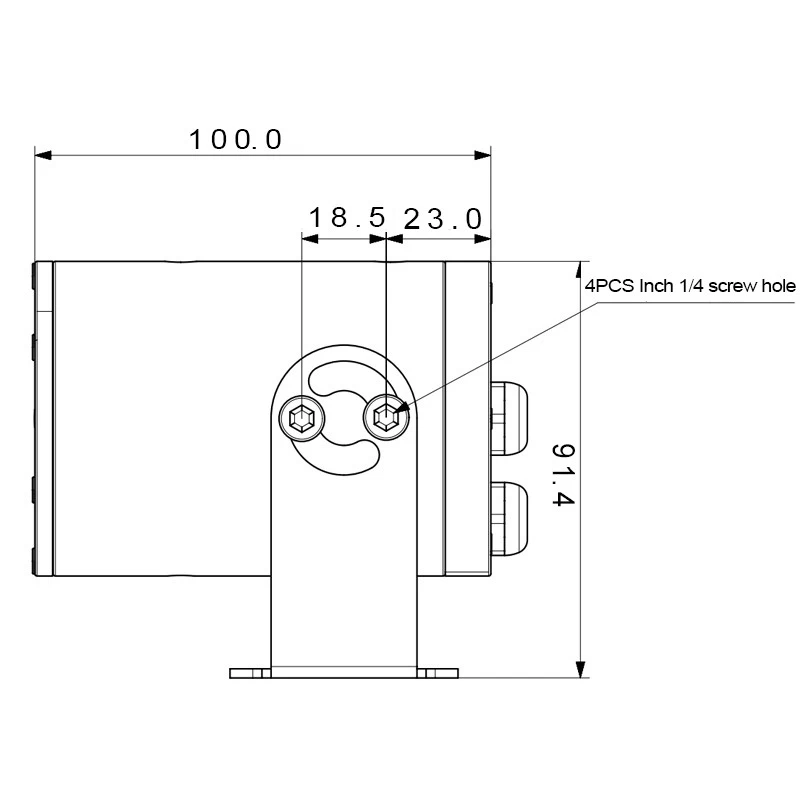

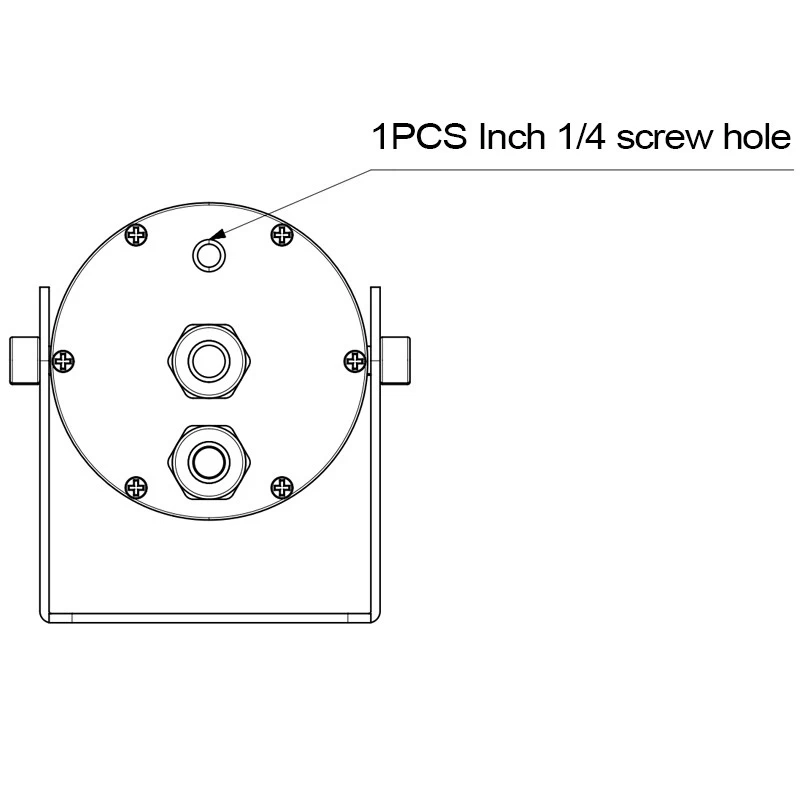

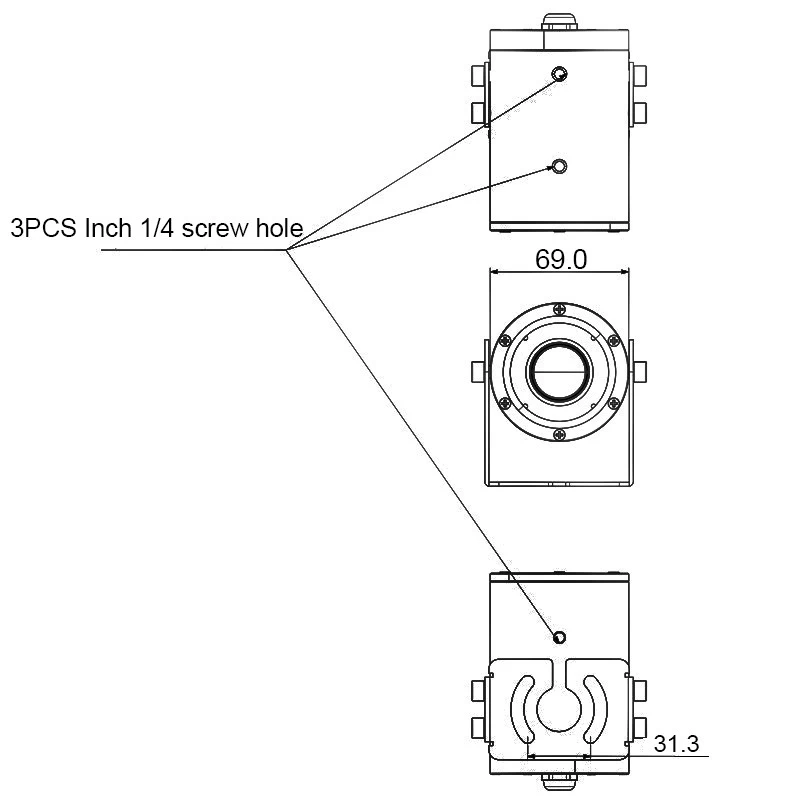

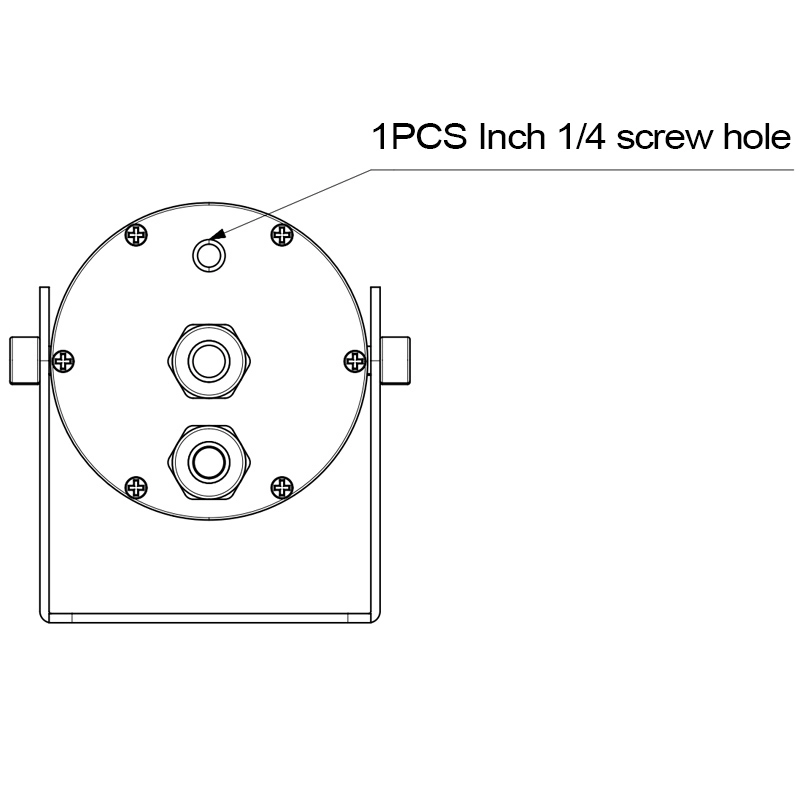

| Camera head dimension | Ø70mm*100mm(L) |
| Sensor | 1/2.7"OV CMOS sensor,color0.01 Lux F1.2.Black/white 0.001Lux F1.2 |
| Lens | 2.8mm (H.FOV:100°) |
| Resolution | 5MP 2592*1520 25FPS |

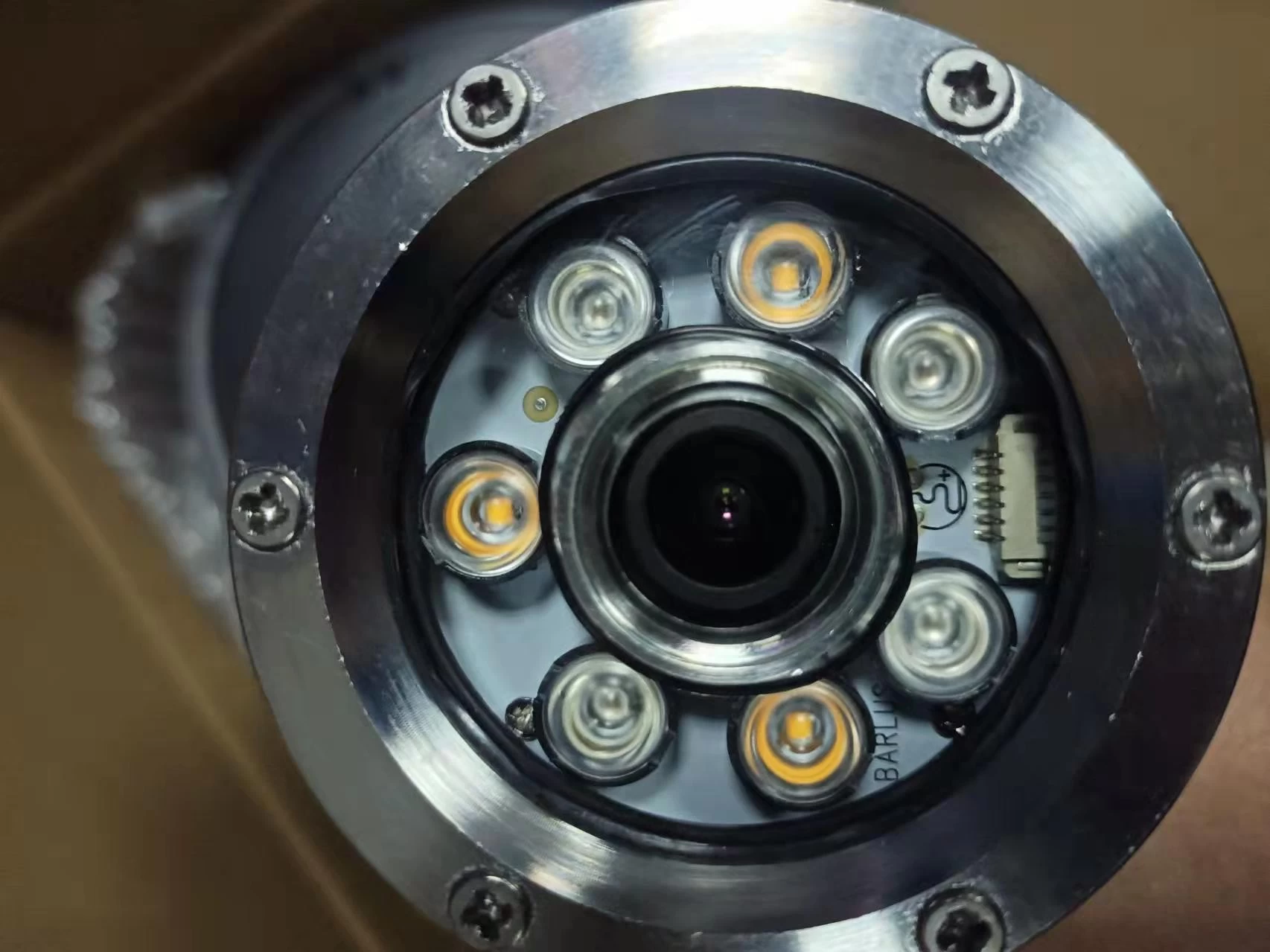

| Illumination | Built-in 3pcs led lights and 4 pcs infrared lights,10 level dimness. 400Lumen |
| Seawater depth | 500Kpa(50M) |

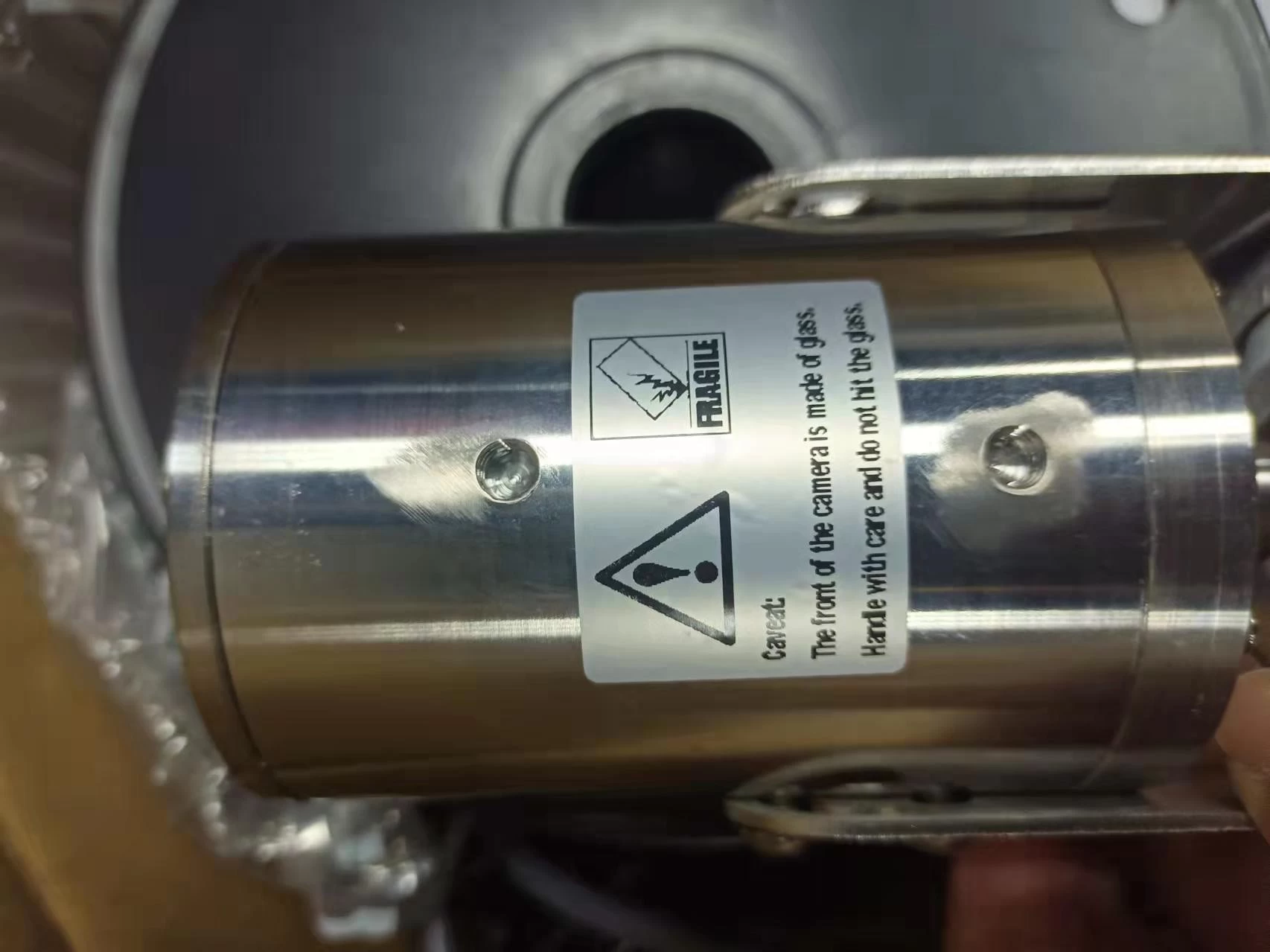

| Camera housing | 316L stainless steel |
| Cable | 10M-80M length,Ø7mm industrial cable.Resisstance to 60KG pull.Anti-aging,anti-friction,resistance to seawater corrosion. |
| Support device | Computer,NVR.Compatible with hikvision,dahua,proprietary protocol |
| Only support windows-IE broswer for camera internal parameter setting | |
| Support agreement | IPv4/IPv6,802.1X,http,https,TCP/IP,UDP,RTP,RTCP,UPNP,RTSP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS, |
| FTP,RTSP,ONVIF,SDK secondary development kit | |
| Use environment | Sewater/Freshwater/ |
| Working humidity | 0%-100% |
| Working temperature | -22℃-50℃ |

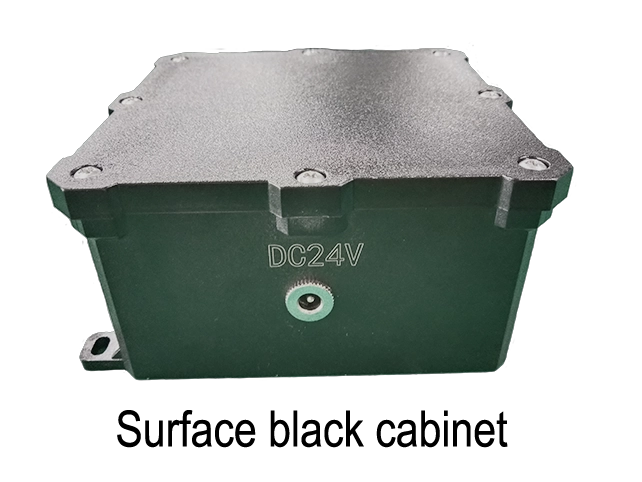

| Power supply | DC24V |
| Net weight | 2KG |

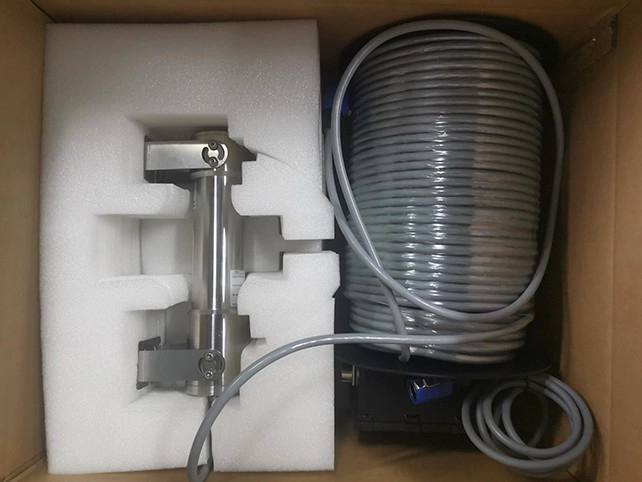

| Packing list | 1*camera head |
| 1*bracket | |
| 1*USB(for manual instruction and software) |
