Dual lens 360°Rotation Borehole Inspection Camera System
- The complete system including a dual lens and 360°rotation camera head,the motorized cable wheel and the surface control unit.
- Woode case dimension:117CM*94CM*80CM;
- Gross weight:234KG

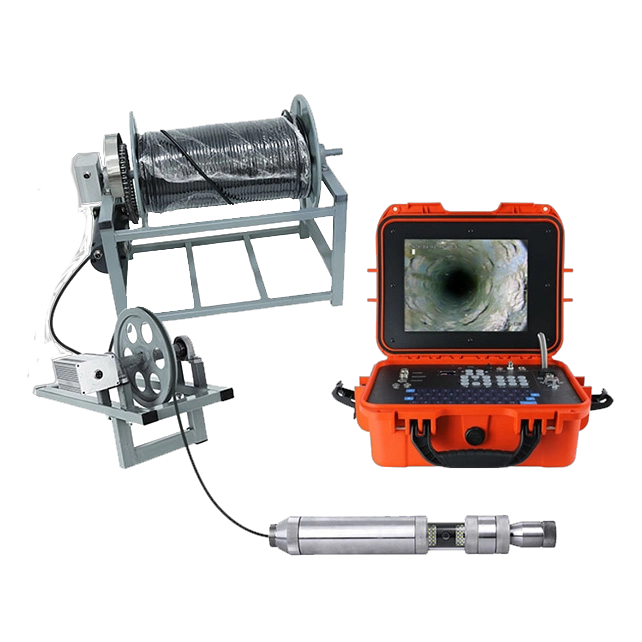

Dual lens 360°Rotation Borehole Inspection Camera System D10014PT
Applications:
- Under fresh water inspection
- Underwater borehole inspection
- Underwater downhole monitoring
- Deep well inspection
- All other underwater visual applications
Detail Spec of the D10014PT
| Camera Head | |
| Diameter | Ø73mm Dual;side 360°rotation lens and down lens |
| Waterproof | 200MPa,water depth:2000M Max |
| Heat-resistant | 75℃ |
| Led Lights | Built-in 12 pcs led lights with 10 level dimness |
| Sensor | Sony CCD sensor |
| High Resolution Lens | Cone Window 2.8 Lens/F2.0 |
| Resolution | 1080*720 |
| Led Lights | Higher bright led lights side: 4PCS;Bottom:6PCS |
| Focus | Side lens with manual focus |
| View of Angle | 90° |
| Signal to Noise Ratio | 52dB(Min) to 60dB(Max)(AGC shut down) |
| Sensitivity | 0.1 Lux at F1.2 5600°K |
| Pan Movement | Support single step and multi-step |
| Tilt Movement | Support single step and multi-step |

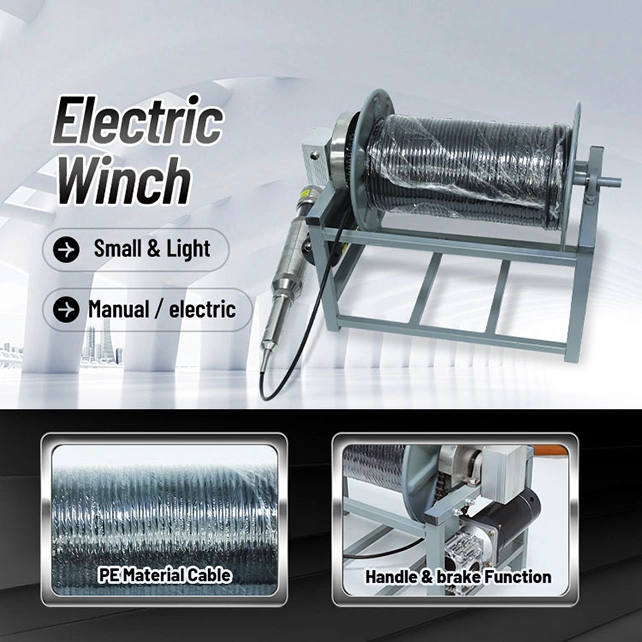

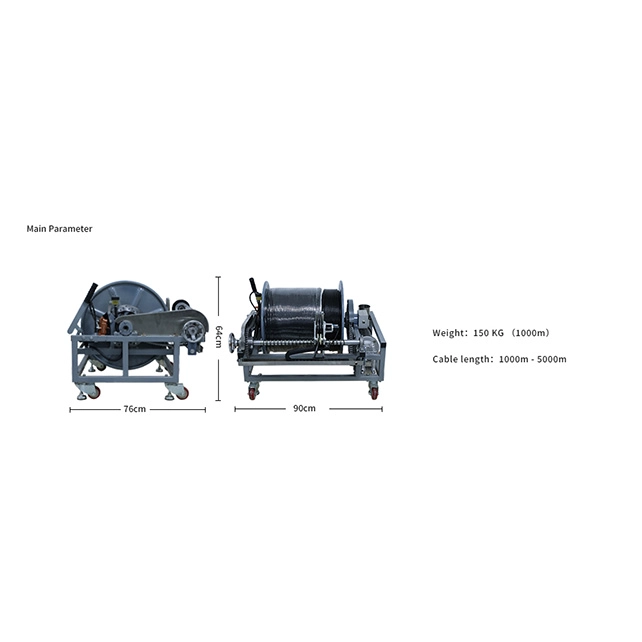

| Cable and Motorized Cable Wheel | |
| Cable Diameter | 8MM |
| Cable length | 1500M |
| Tensile Strenght | 280KG |
| Logging Cable | 6 Cores |
| Digital Meter-counter | Accurate 0.05M |
| Centralizer | High elastic stainless steel centralizer |
| Heat-resistance | 70℃ |
| Downhole Pulley | |
| Pulse | 400 |
| Digital meter-counter function | Work together with the suitcase |
| Meter-counter accuracy | 0.05M / Automatic calibration |
| Suitcase/HD DVR | |
| Power Supply | 12V-220V |
| Dimension | 415*340*144MM |
| Depth Jack | Yes |
| Video in /out Jack | Yes |
| Video/audio/text recording | Yes |
| Video/audio/text recording | Yes |
| Storage | USB |
| Monitor | |
| Size | 12 inch |
| Power Supply | DC12V |
| Wooden Case Packing | |
| Woode case dimension | 117cm*94cm*80cm |
| Gross weight | 234KG |

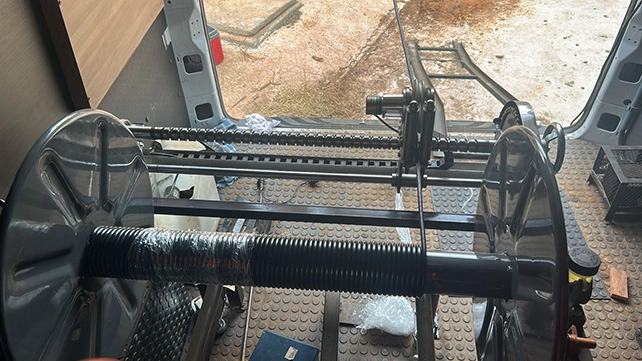

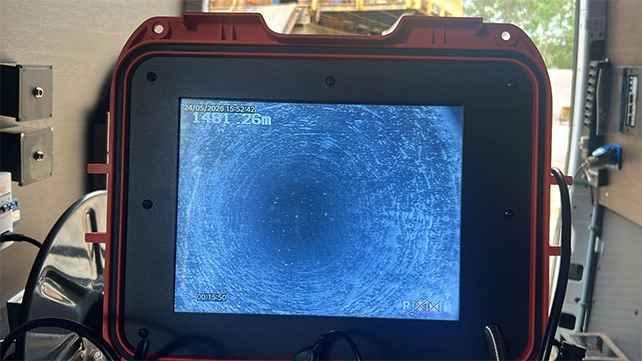

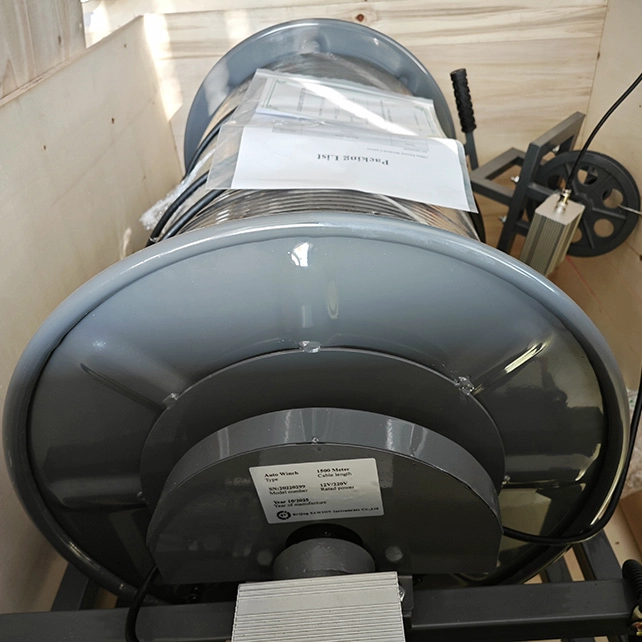

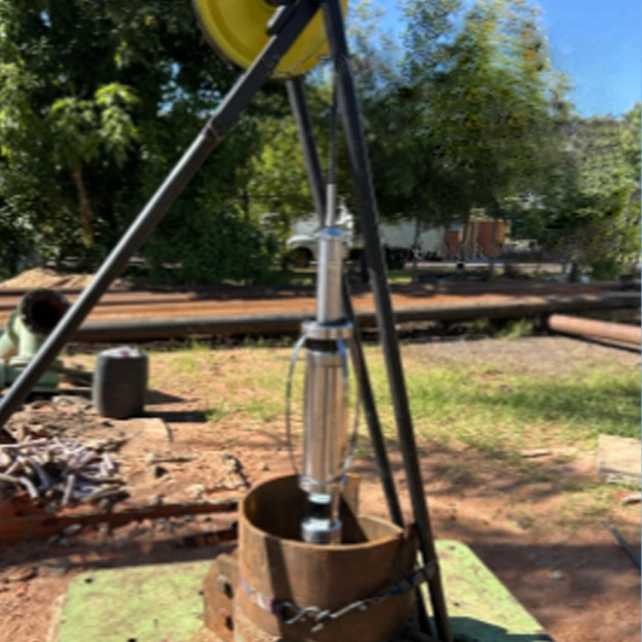

Packing Pictures:
