PT50 Borehole Inspection Camera System for Underwater Monitoring

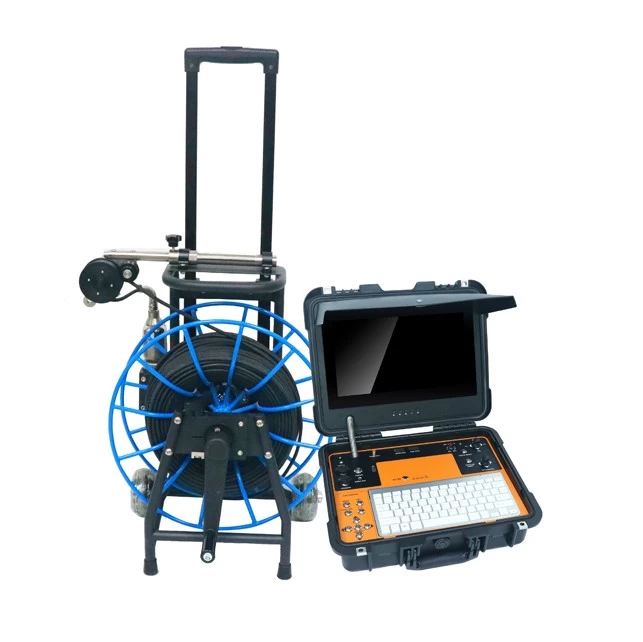

- The complete system including the PT50 head,the push cable wheel and the surface control unit
- Two pcs packing cartons and dimension as:(L)60CM*(W)41CM*(H)74CM;(L)48.5CM*(W)21.5CM*(H)42.5CM
- Gross weight:17KG
PT50 Boreholes Inspection Camera System D10000PT
Application:
- Borehole inspection
- Deep well inspection
- Under water monitoring
- Under fresh water inspection
- All other visual applications

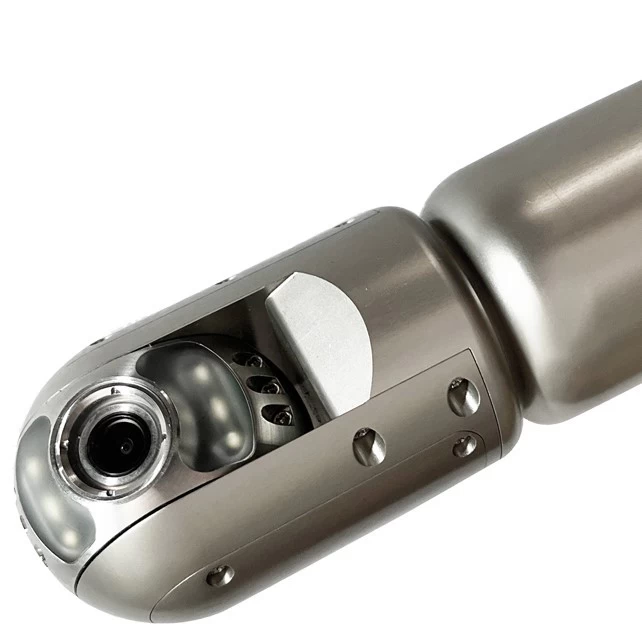

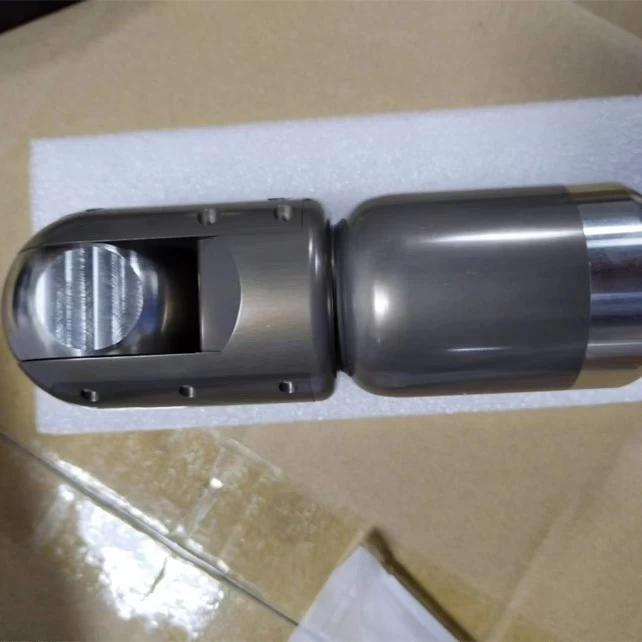

| PT50 Video Head | |
| Camera Dimension | Ø50mm*(L)154mm |
| Sensor | 1/3" CMOS sensor |
| Resolution | 1.3MP |
| Rotation | Pan:360°;Tilt:180° |
| Foucus | Mannual focus,when the head touch the pipe wall,it still can catch an clear image |
| View Angle | 120° |
| Waterproof | IP68,fresh water depth:10Bar(100M) |
| Illumination | Built-in 6pcs led lights and dimless |
| Lens Windows | Sapphire glass |

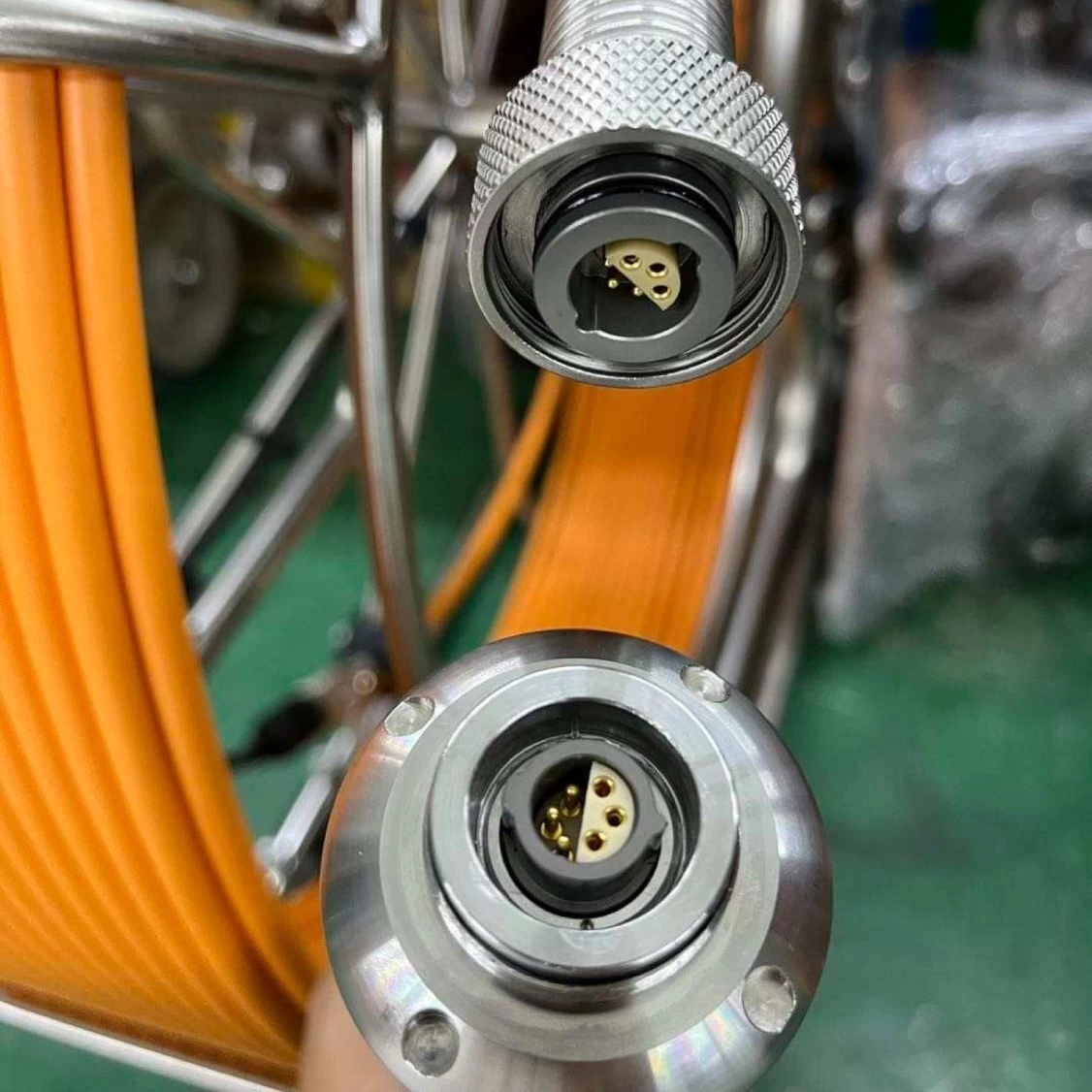

| Head End Connector | Pins plug-in end connector that avoid the pins movement |

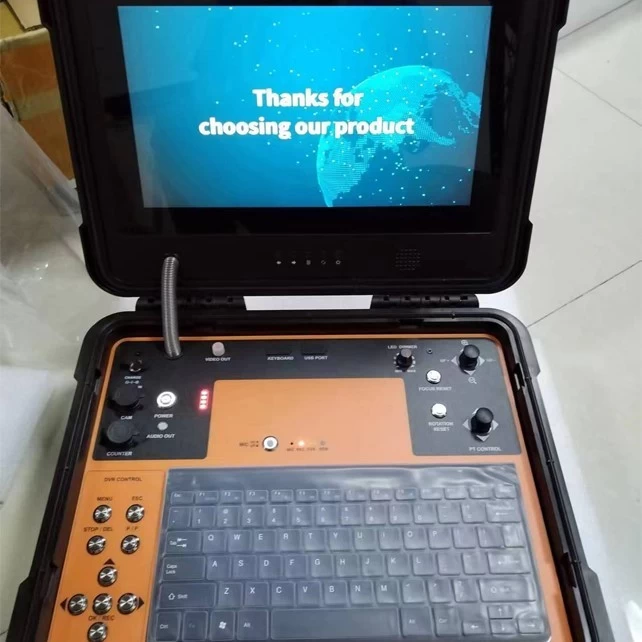

| 13Inch Orange/Black Surface Control Unit | |
| Screen | 13inch IPS HD screen with visor |
| DVR | HD DVR video and audio recording |
| 2 pcs Joysticks | 1PC for camera head movement,1PC for manual focus |
| Video Format | MP4 |
| USB tooth keyboard | Text recording |
| Power Supply | Built-in 8800mA rechargeable li-ion battery pack.Run time: 5 hours |
| Battery Level Indication | Yes |
| Charger | AC110V-240V 1.5A.Charging time: 8 hours |
| Working Temperature | -20℃-30℃ |
| Handle Push Cable Wheel | |
| Material | Flexible cooper axis cable |
| Cable Diamter | Ø7MM thick |
| Cable Length | 100M-200M |
| Wheel Size | (H)70CM*(W)28CM*(L)84CM |

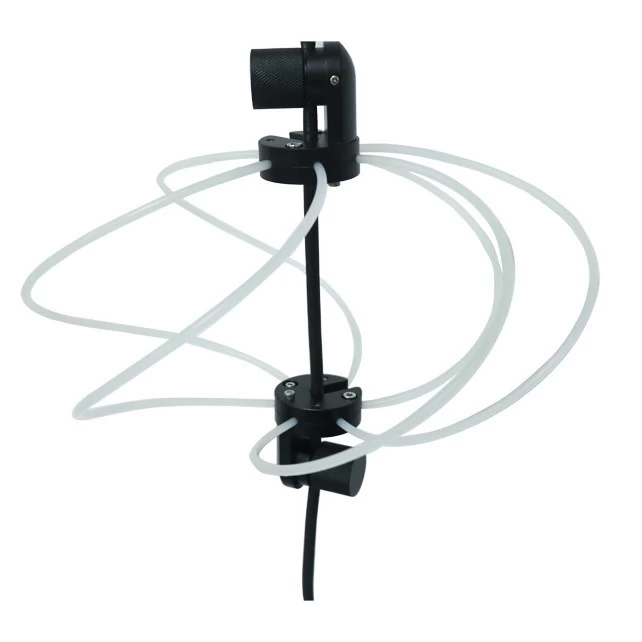

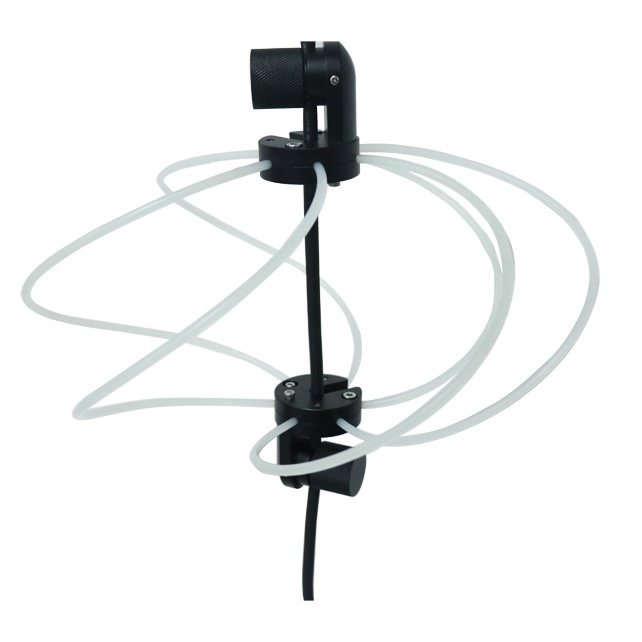

| Centering Skid | |
| Material | Plastic and nylon |
| Diameter Adjustable | Yes |
| Max Diameter | Ø280MM |

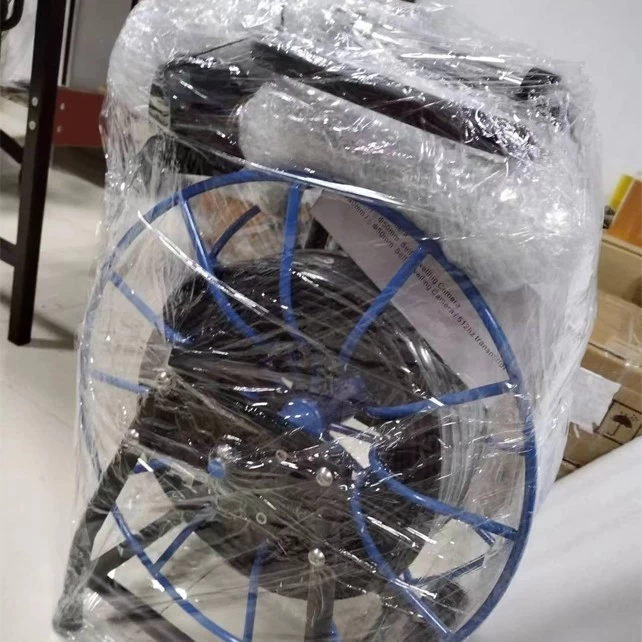

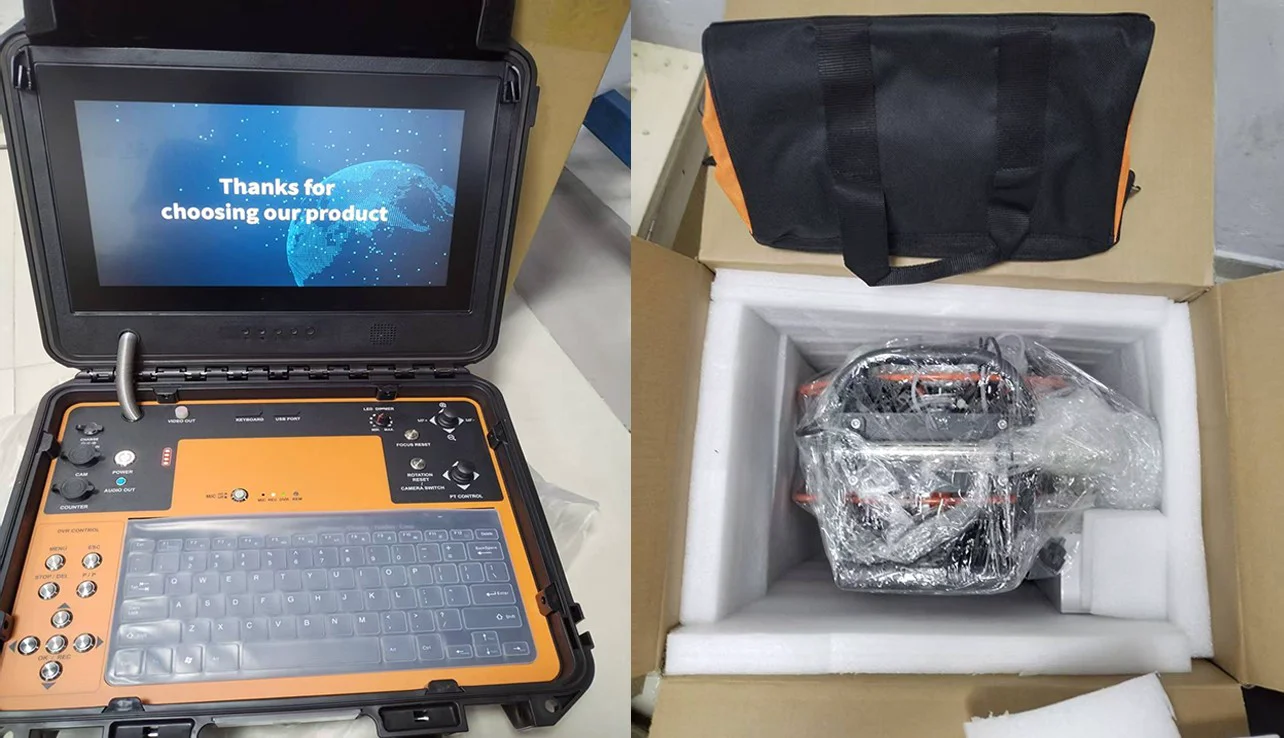

Packing Pictures:
