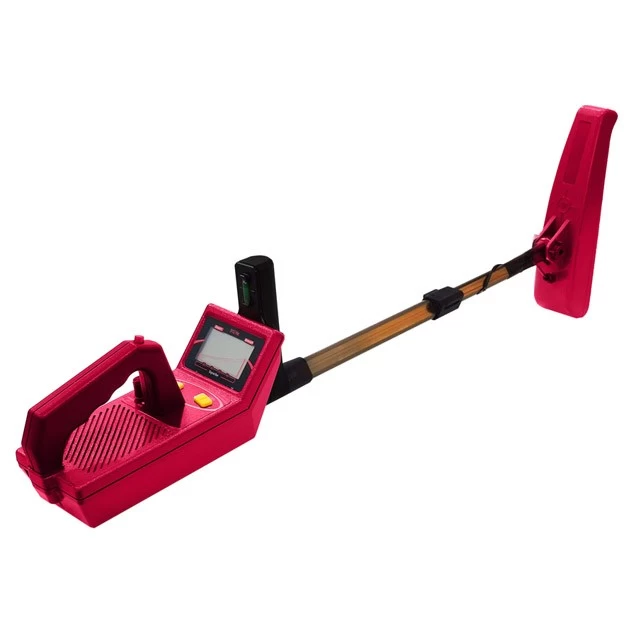

Pipe locator with FM512Hz and Depth Function

• Underground civil infrastructure projects
• Municipal projects and service
• Ofen work together with the pipe video inspection camera system

  Detail spec of the FM512Hz pipe locator FL51200D

  Frequency	FM512Hz
  Quiescent current	Less than 35A
  Working mode	Positionning/Depth measurement
  Gain adjustment(+,-)	Step and continuously adjustable,
  The signal strength bar display LCD	Shows 24 level of signal strength,the 20th.Level is marked as "depth measuring bit"
  The signal strength digital display	Shows 3 digits,which can display the signal strength in detail
  The maximum positioning depth	Related to the power of the transmitter. When equipped with 512Hz transmitter, the maximum
  	positioning depth is about 8-10 feet.

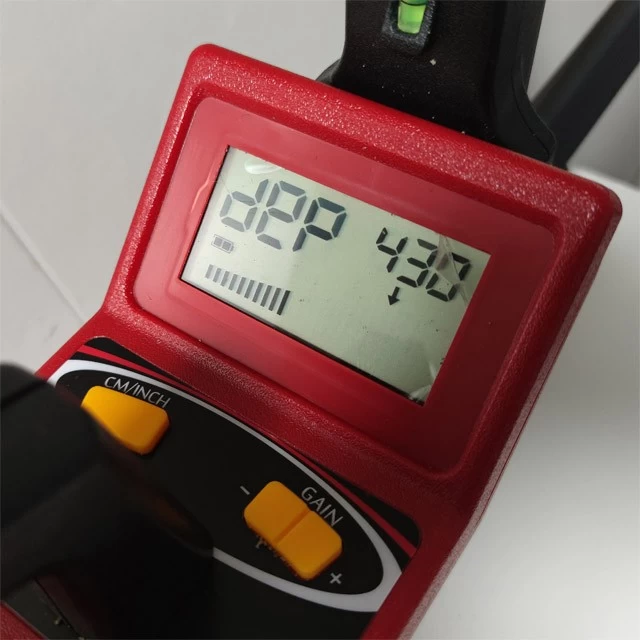

  Depth measurement	Press the red mearsurement button, and the three digits will display the depth. Hold about 5 seconds
  	each time,When equipped with FM512Hz transmitter, the maximun depth measurment range is about
  	0.3-4M.
  Unit conversation depth unit	Can choose inches or centimeters
  No signal was received for two sounds	About 400Hz frequency. Received a signal,switched to a frequency of about 800Hz
  	The sound changes when the signal strength changes.
  Volume adjustment potentiometer	Continuously adjusts speaker or headphone volume(headphones not included)
  Power	6AA Alkaline battries
  Low voltage prompt	7.2V
  The connecting rod	Can be adjustable in length from 80cm to 95cm
  Dimensions	100cm*10cm*10cm
  Weight	About 1.5KG
  Operation temperature	-10℃-+50℃
