Barlus Submersible CCTV Camera System

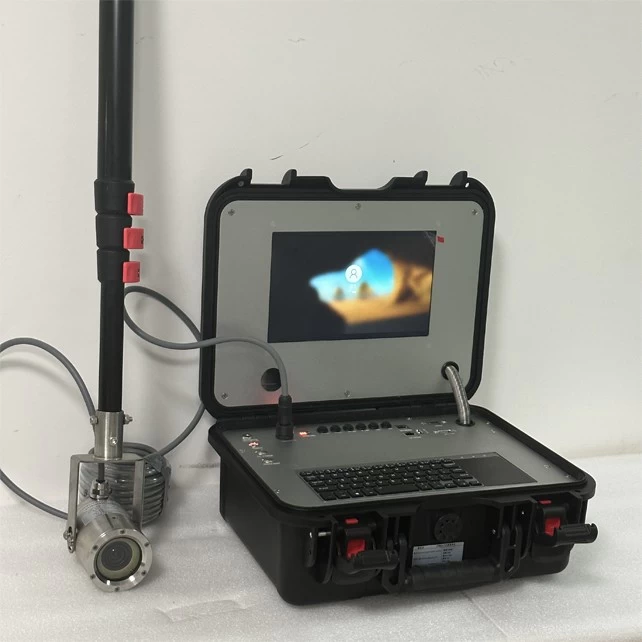

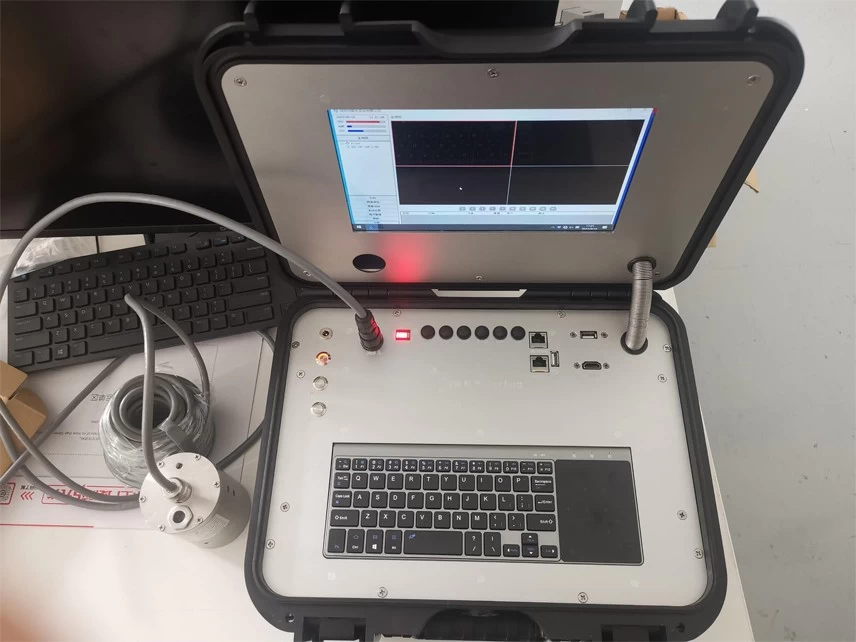

- Barlus submersible CCTV camera system D10000 comes with surface control box,industrial cable,and subsea video camera head.Carbon fiber telescopic pole is option.
Barlus Submersible CCTV Camera System D10000(upgrade )
Application:
- Field biologist for field work or field trip
- Seawater and freshwater research
- Salmon fish monitoring
- Vessel/boat/ship hull inspection
- Analysis of the underwater ecosystem
- Offshore survey
- Subsea drilling and ROV operations
- Hydrological research
- Another visual applications

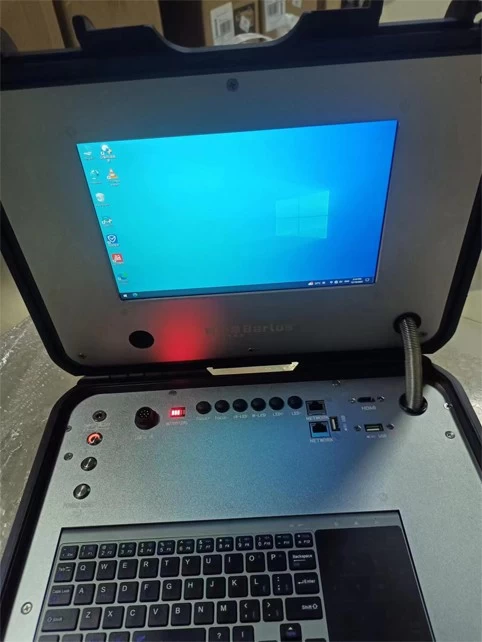

| Display | |
| Screen | 10inch SPI HD display,170° wide view angle |
| Split Screen | Available |
| Waterproof | IP65 waterproof rating,to prevent water jetting |
| OSD Language | English |
| Suitcase | |
| DVR | Support for video,playback,query,copy and so on;controlling the display function |
| Audio | Audio input, you can record the sound through the microphone,stored with the hard disk |
| External Jacket1 | 2pcs external RJ45 jacket,support WAN/LAN |
| External Jacket2 | 2pcs external USB jackets |
| Video Input | 4K/5MP/4MP/3MP/2MP 60fps |
| Storage | Built-in 500G hard drive,long time storage HD video |
| Special | Anti-knock,effectively ensure that the internaternal componenets of normal work |
| System | Built-in windows system |
| Waterproof | IP65 waterproof,to prevent jetting water |
| Mouse | Support the mouse for quick operation |
| Video Format | H.264 and AVI |
| Buit-in Battery | Built-in 6000mAh rechargeable battery,run time:6 hours. |
| Power Supply | DC24V |
| Adapter | Input: 110v-240V 2.5A; Output:25.2V 3A |
| Working Temperature | -20℃-55℃ |
| Dimension | 36.7cm*29.6cm*15.3cm |
| Gross /Net Weight | 4.5KG/4KG |

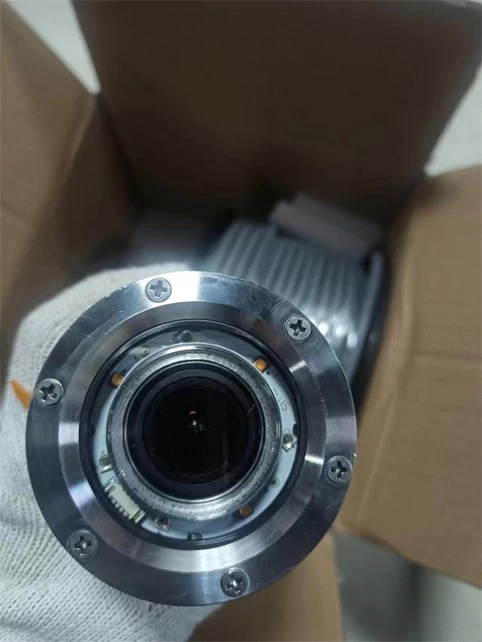

| Camera Head | |
| Dimension | Ø70mm*100mm(L) |
| Lens | 2.0mm(H.FOV:100°) |
| Sensor | 1/2.8" SONY CMOS sensor,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 |
| Resolution | 2MP 1920*1080P 25fps |
| Illumination | Light sensor control 3 white led lights,4 infrared lights,10 level brightness |
| Housing Material | 316L stainless steel,anti-corrosion |
| Waterproof | IP68 |
| Water depth | Maximum 1000Kpa(Waterpressure resistance 100M) |
| Cable | Industrial cable material,Ø6.7mm thickness.Resistance 60KG pull.Anti-aging,anti-friction,resistance to seawater corrsion. |
| Cable length | Standard 20M-80M;Tailor -made for 80M-120M,120M-300M |
| Support Device | Support IOS,android,computer,NVR.Compatible with Hikvision,Dahua,Proprietary protocol |
| Only support windows IE browser for camera internal parameter setting | |
| Support Agreement | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnp/ONVIF;SDK secondary development |
| Application | Seawater vision/Freshwater vision/Land vision |
| Working Humidity | 0% - 100% |
| Working Temperature | -22 ℃ - 55℃ |
| Carbon Fiber Telescopic Pole | |
| Material | Carbon Fiber |
| Length | 8M/12M |
